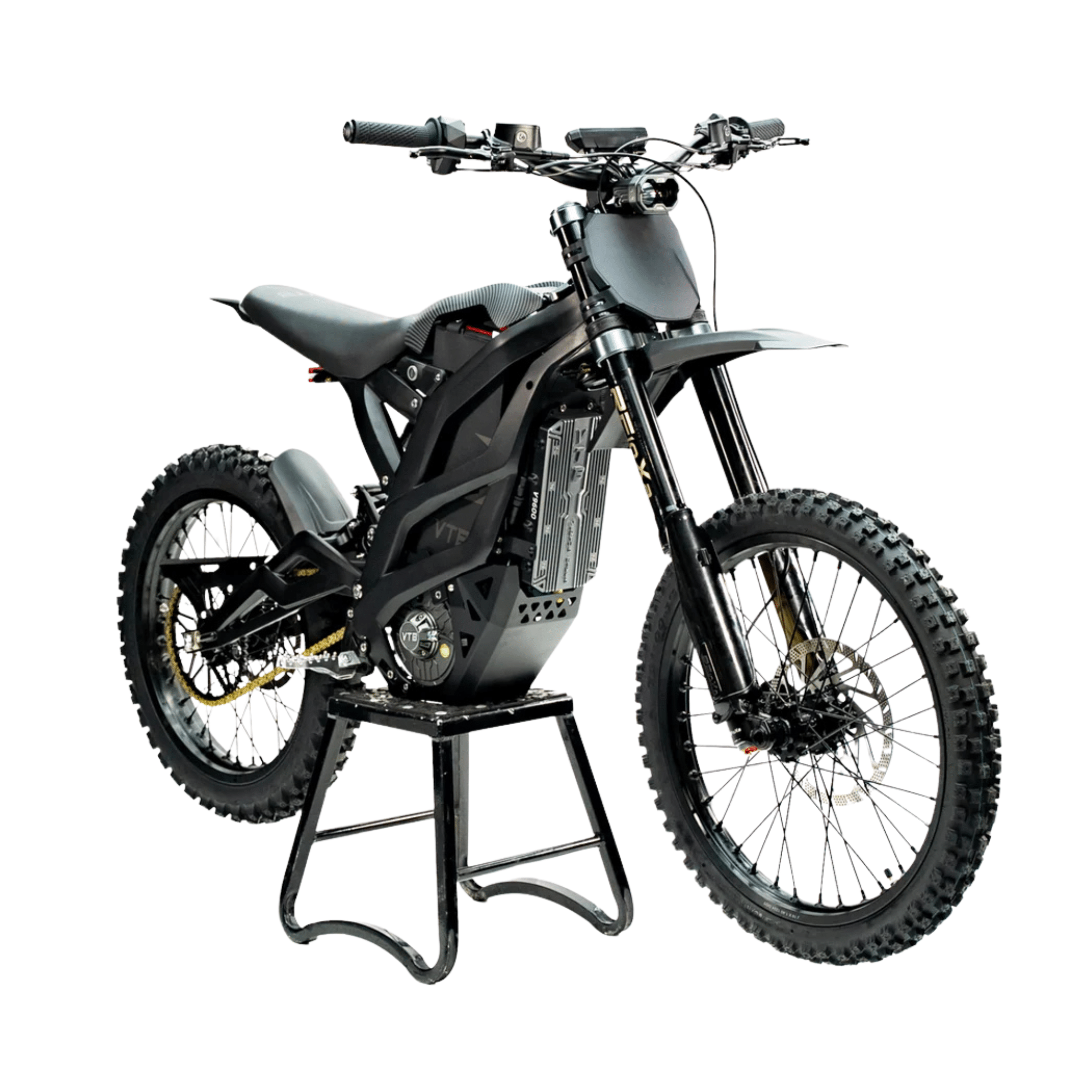

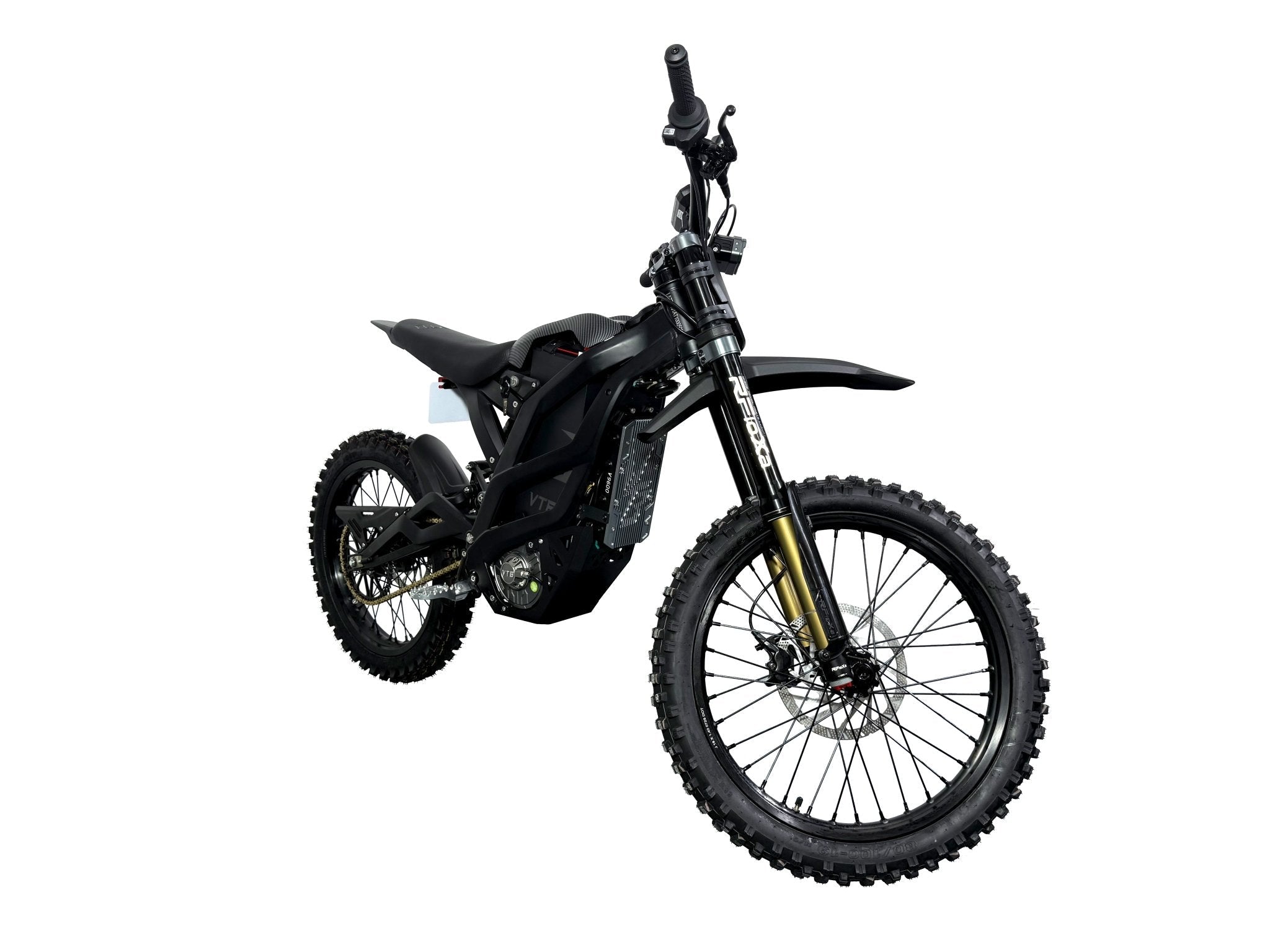

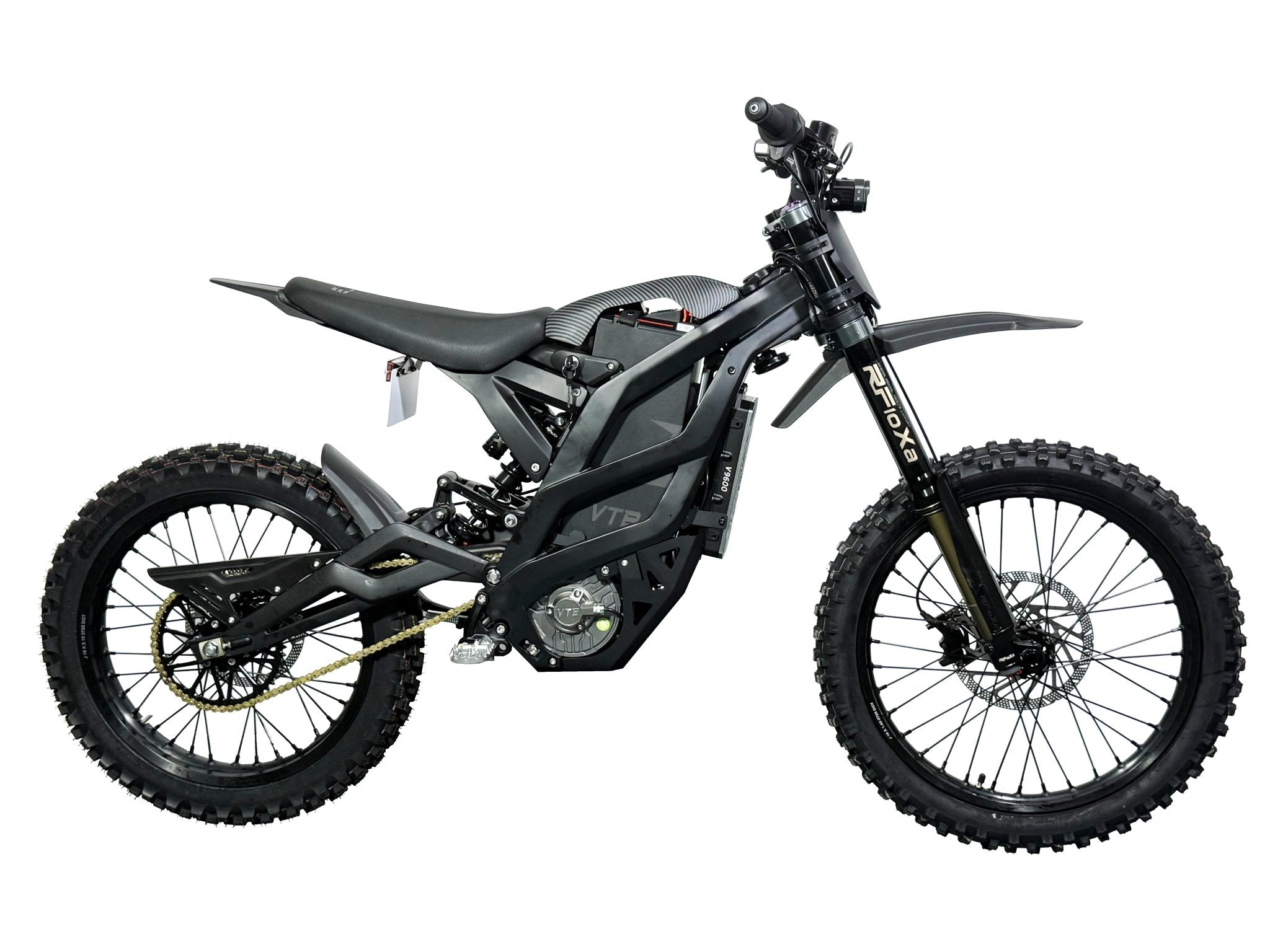

The Evolution of Performance

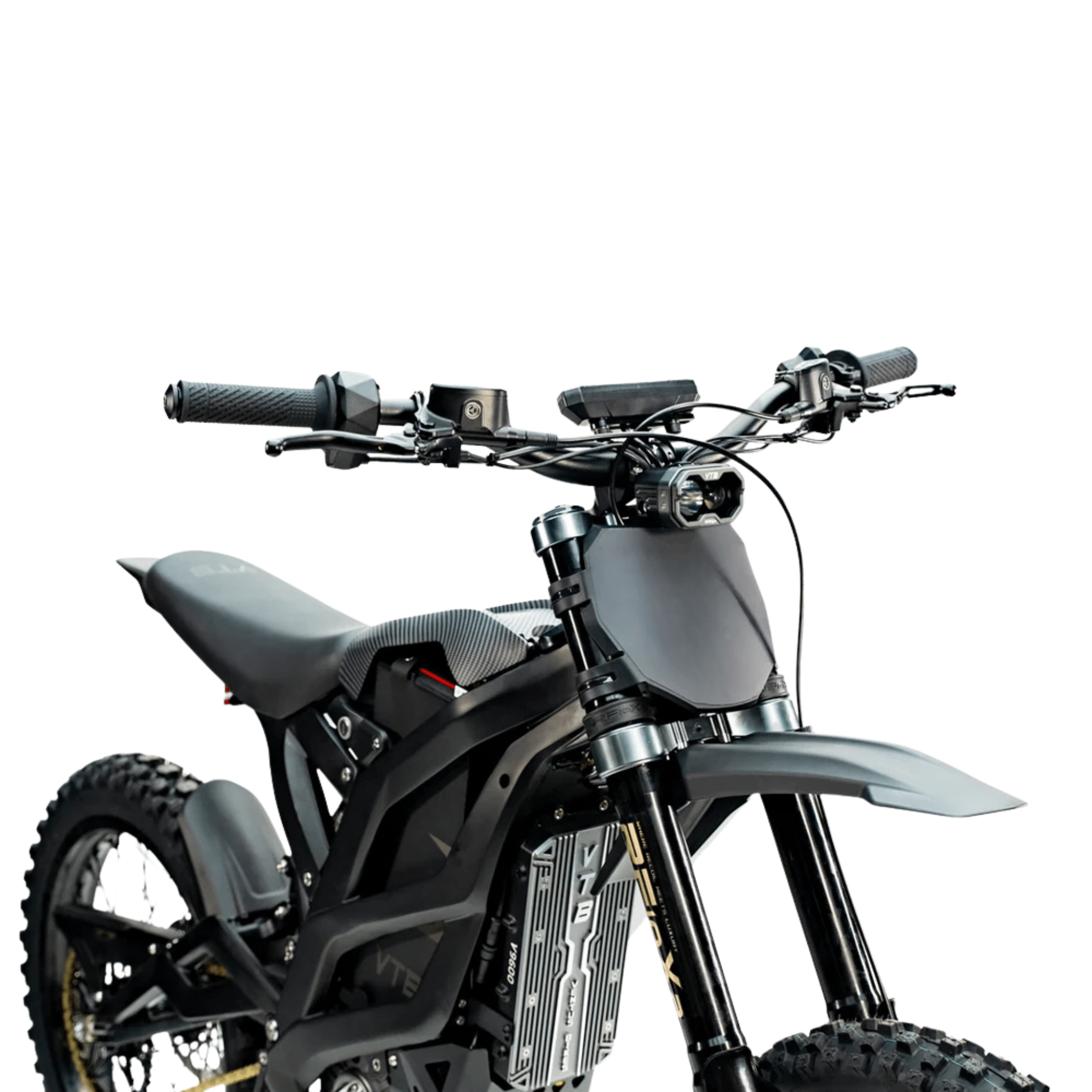

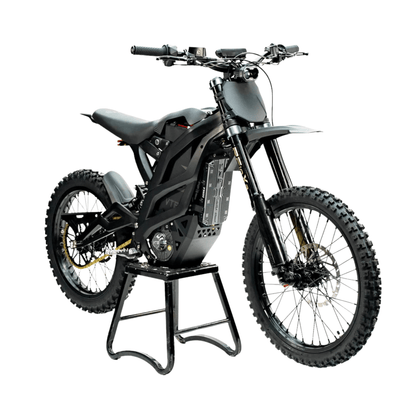

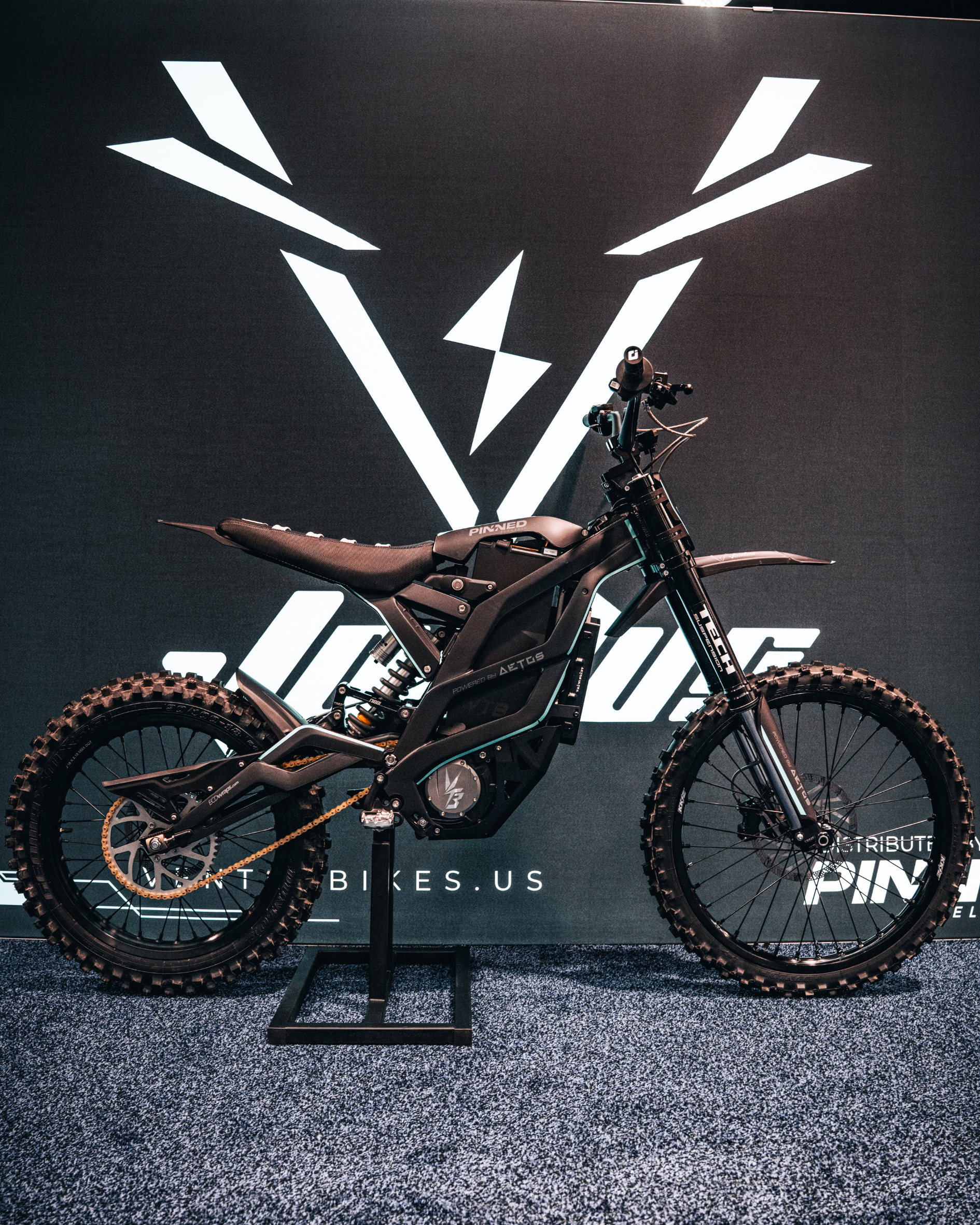

The Ventus V1+ EVO is the next evolution of high-performance electric motocross. Designed for riders who demand uncompromising power, precision, and reliability, the V1+ EVO combines an advanced powertrain, premium suspension, race-inspired braking, and intelligent rider technology into one purpose-built machine.

At the heart of the V1+ EVO is a 52 kW Ryuga Permanent Magnet Synchronous Motor (PMSM) paired with the Aetos Pro Smart Controller, producing an impressive 32 kW of peak power and 700 N·m of peak torque. Together, they deliver explosive acceleration with exceptionally smooth throttle response, allowing riders to tailor power delivery to any terrain or riding style.

Power is supplied by a 72V 50Ah NCM battery utilizing premium BK51 lithium cells, engineered to provide consistent high-current output, rapid charging, and dependable performance ride after ride. Combined with premium RFloXa suspension, upgraded four-piston braking, forged aluminum wheels, and fully customizable electronic controls, the V1+ EVO is built to perform at the highest level whether you're riding motocross, hard enduro, technical singletrack, or open desert.

---

Engineered for Performance

Every major component on the V1+ EVO has been carefully selected to improve durability, control, and rider confidence.

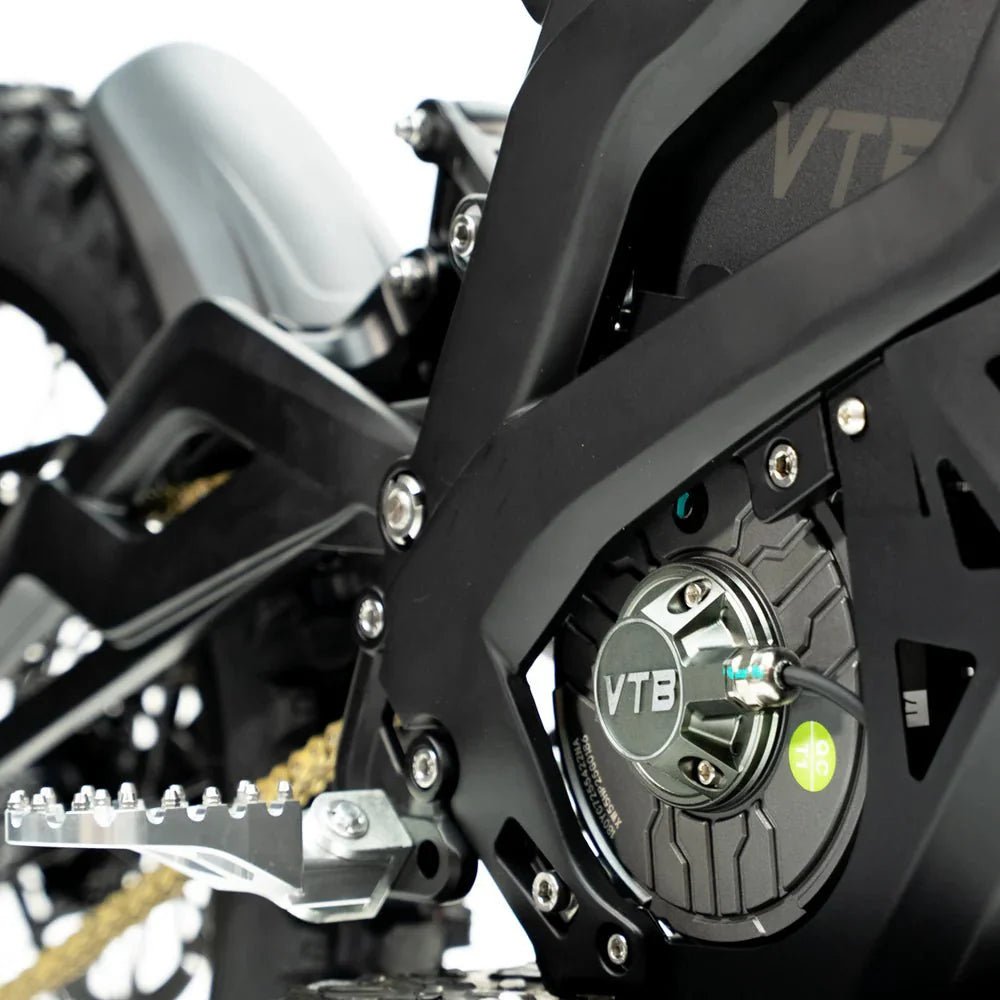

52 kW Ryuga PMSM Motor

The Ryuga Permanent Magnet Synchronous Motor delivers exceptional efficiency, instant torque, and continuous high-performance output. Designed to remain cool under demanding conditions, it provides smooth, controllable power across the entire RPM range while producing up to 700 N·m of peak torque.

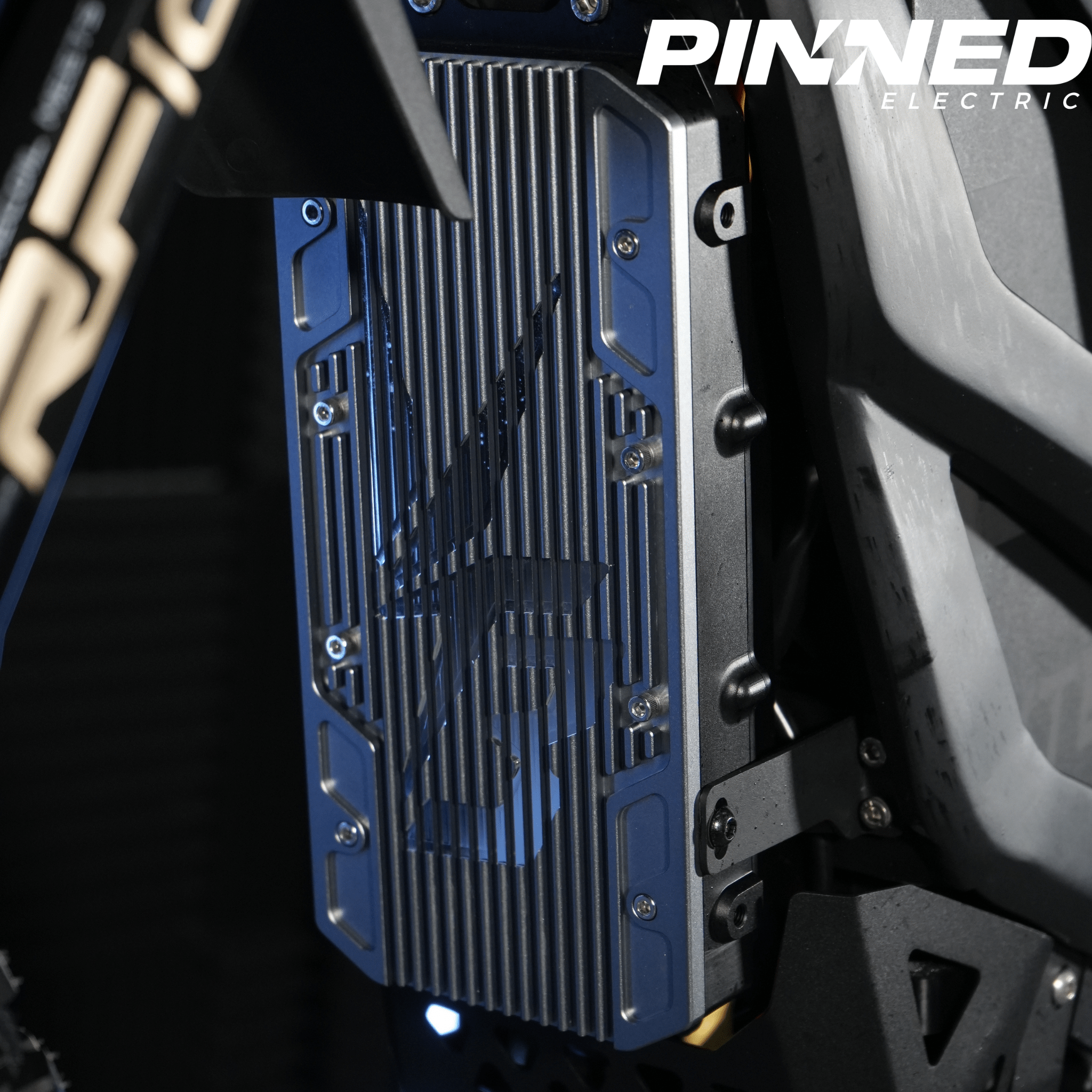

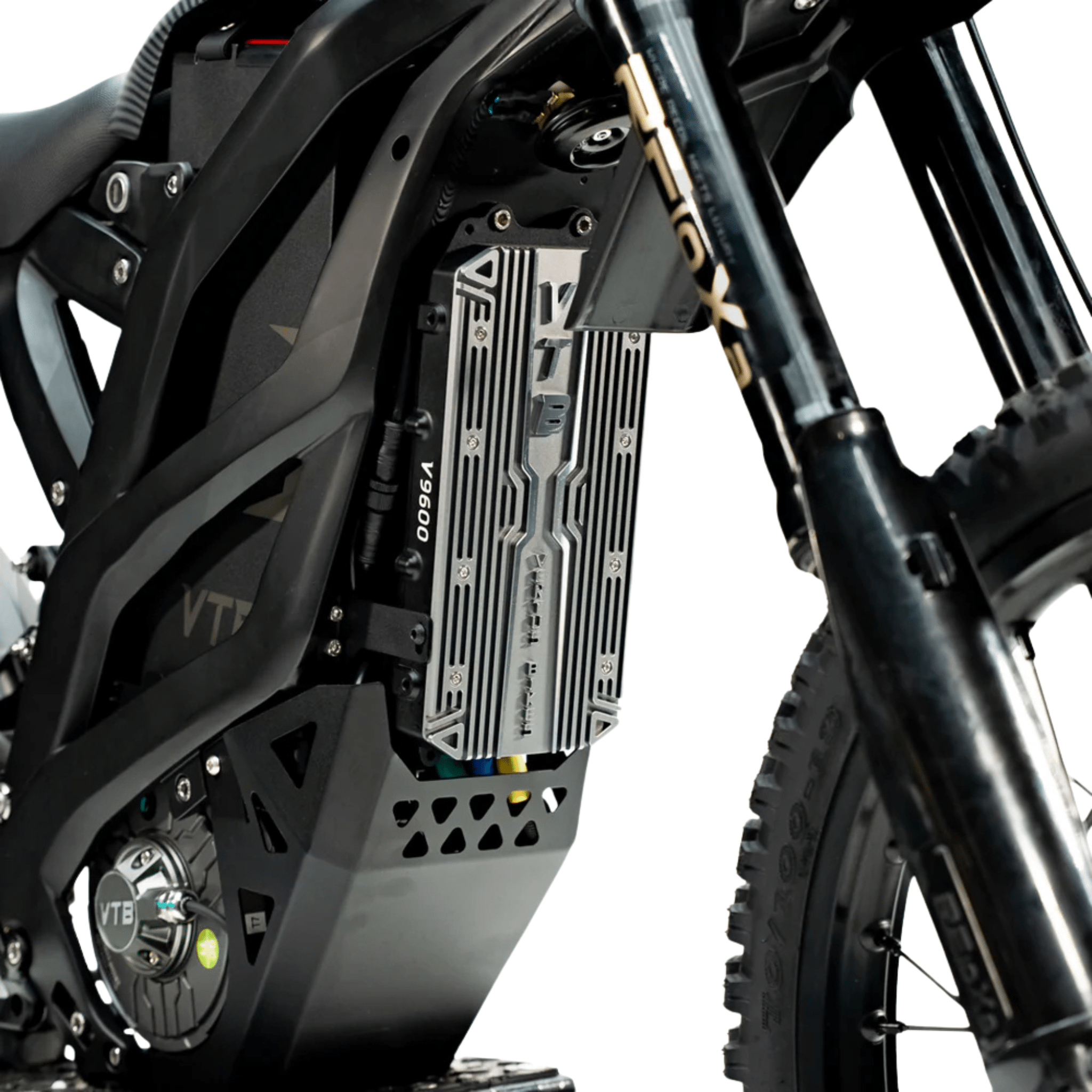

Aetos Pro Smart Controller

The Aetos Pro Controller provides complete control over the riding experience through the Ventus mobile app.

Features include:

• Adjustable throttle response
• Adjustable power output
• Multiple ride maps
• Regenerative braking adjustment
• Wheelie Mode
• Live diagnostics
• Firmware updates
• Bluetooth connectivity

Fine-tune every aspect of the motorcycle directly from your smartphone.

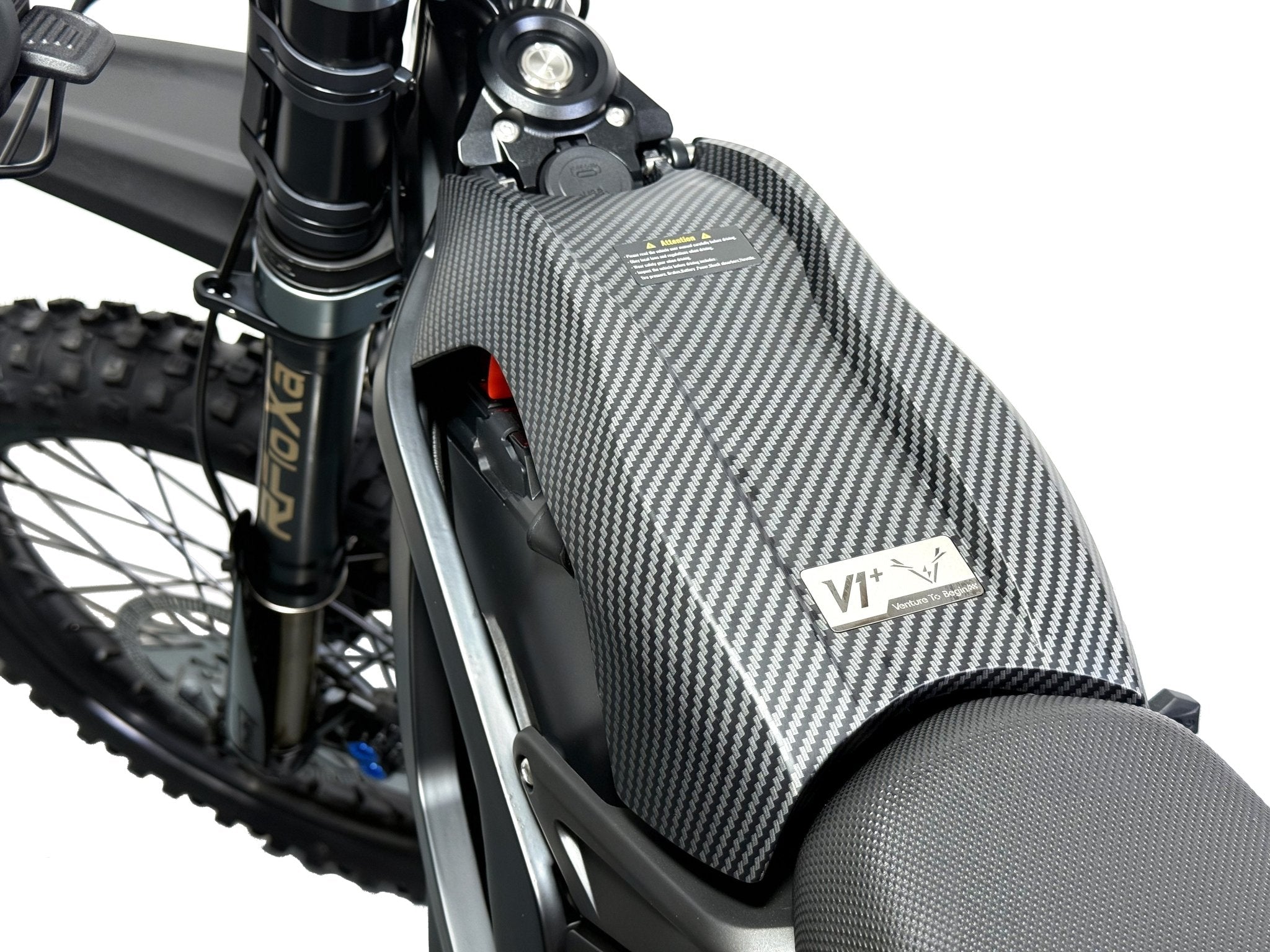

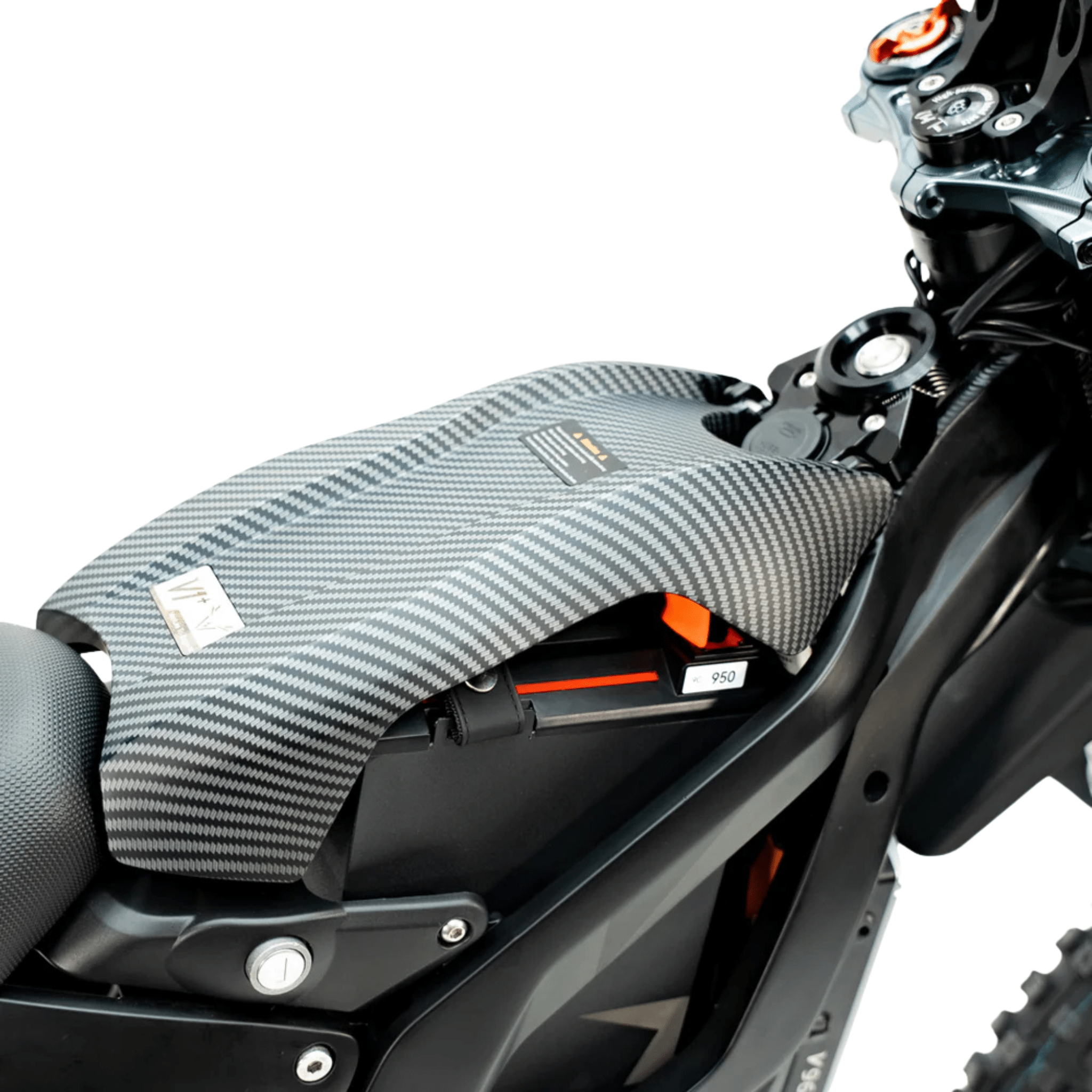

72V 50Ah BK51 Battery

Built using premium BK51 NCM lithium cells, the battery delivers outstanding power density and thermal performance while supporting continuous high-current output.

• 72V Nominal Voltage
• 50Ah Capacity
• Premium BK51 Cells
• 450A Overcurrent Protection
• Approximately 4.2 Hour Charge Time

---

Premium Suspension

The V1+ EVO comes equipped with one of the most advanced suspension packages available on an electric dirt bike.

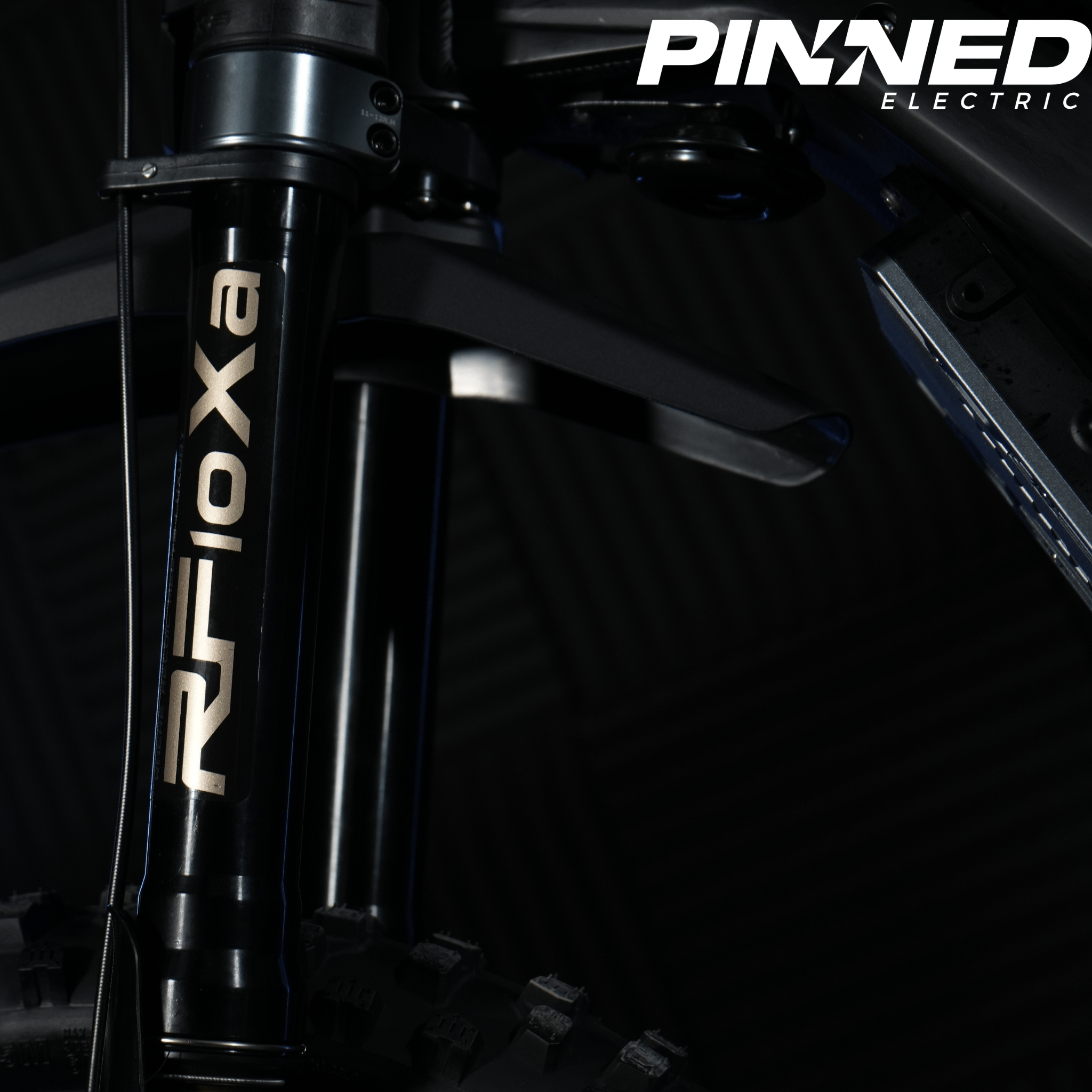

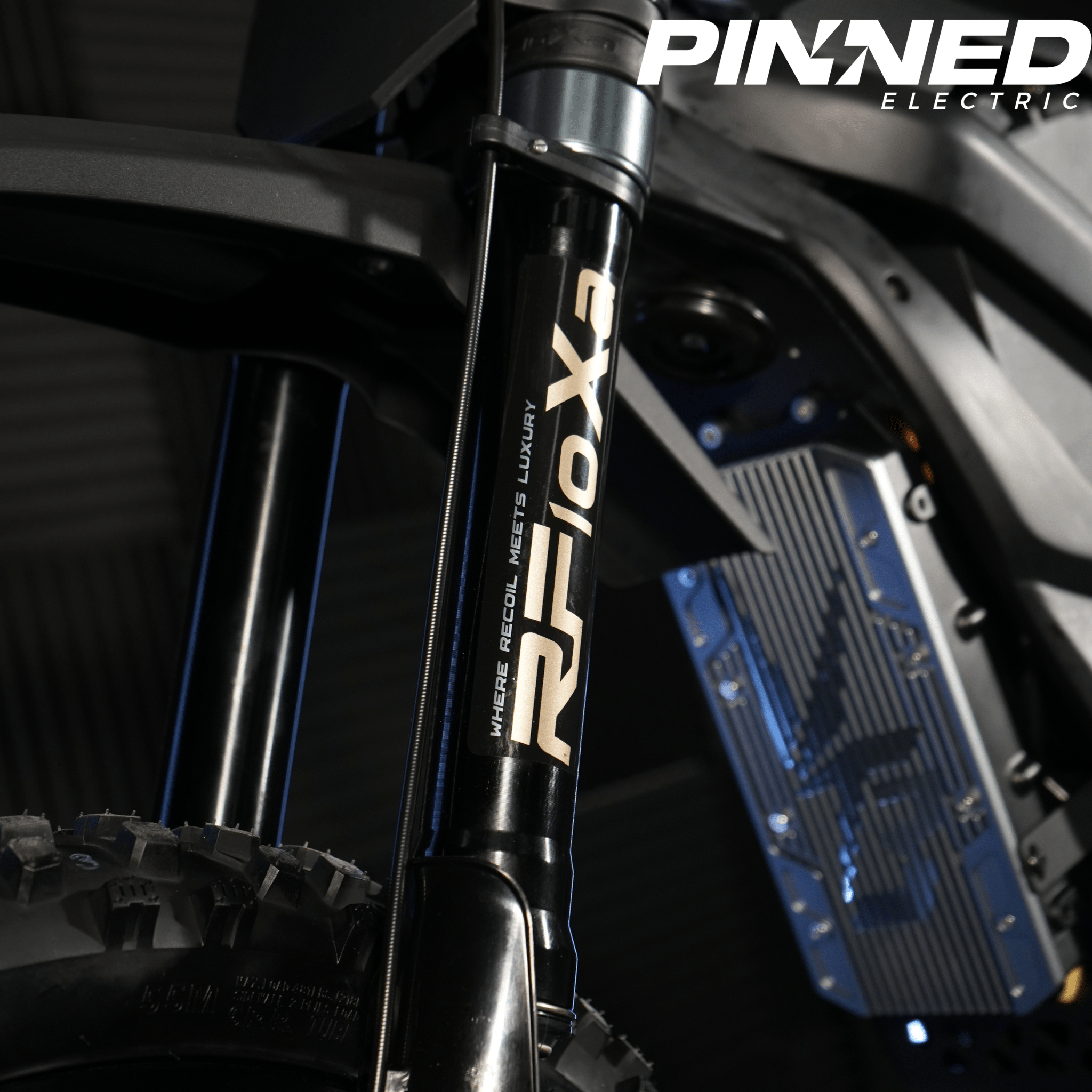

Front Suspension

RFloXa Hawk33

The latest RFloXa Hawk33 inverted fork provides outstanding front-end feedback and confidence across all terrain.

Features include:

• 775 mm Fork Length
• Progressive 45–60 lb Spring
• Fully Adjustable Compression
• Fully Adjustable Rebound
• Race-developed internal valving
• Excellent bottoming resistance
• Improved small-bump compliance

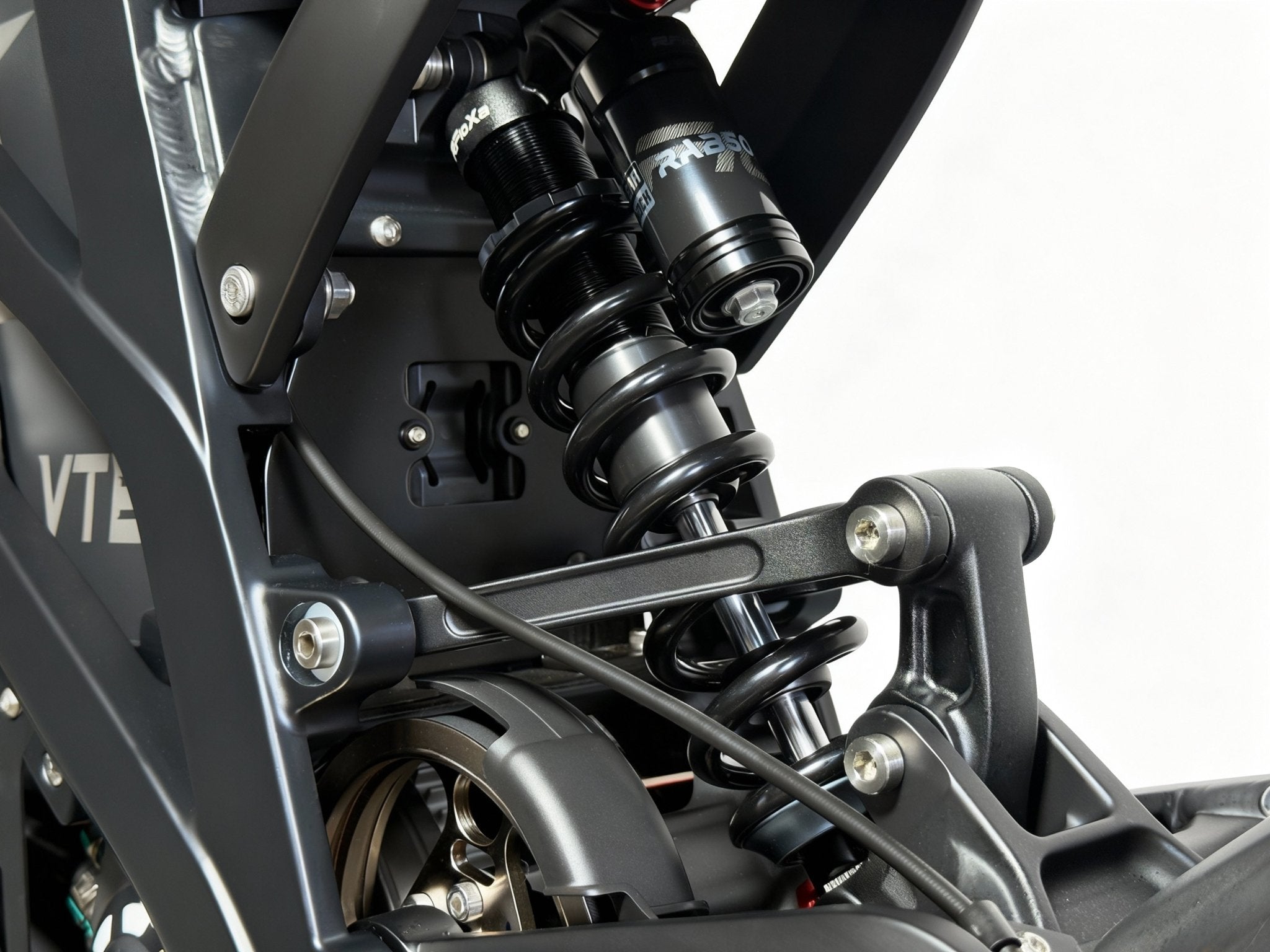

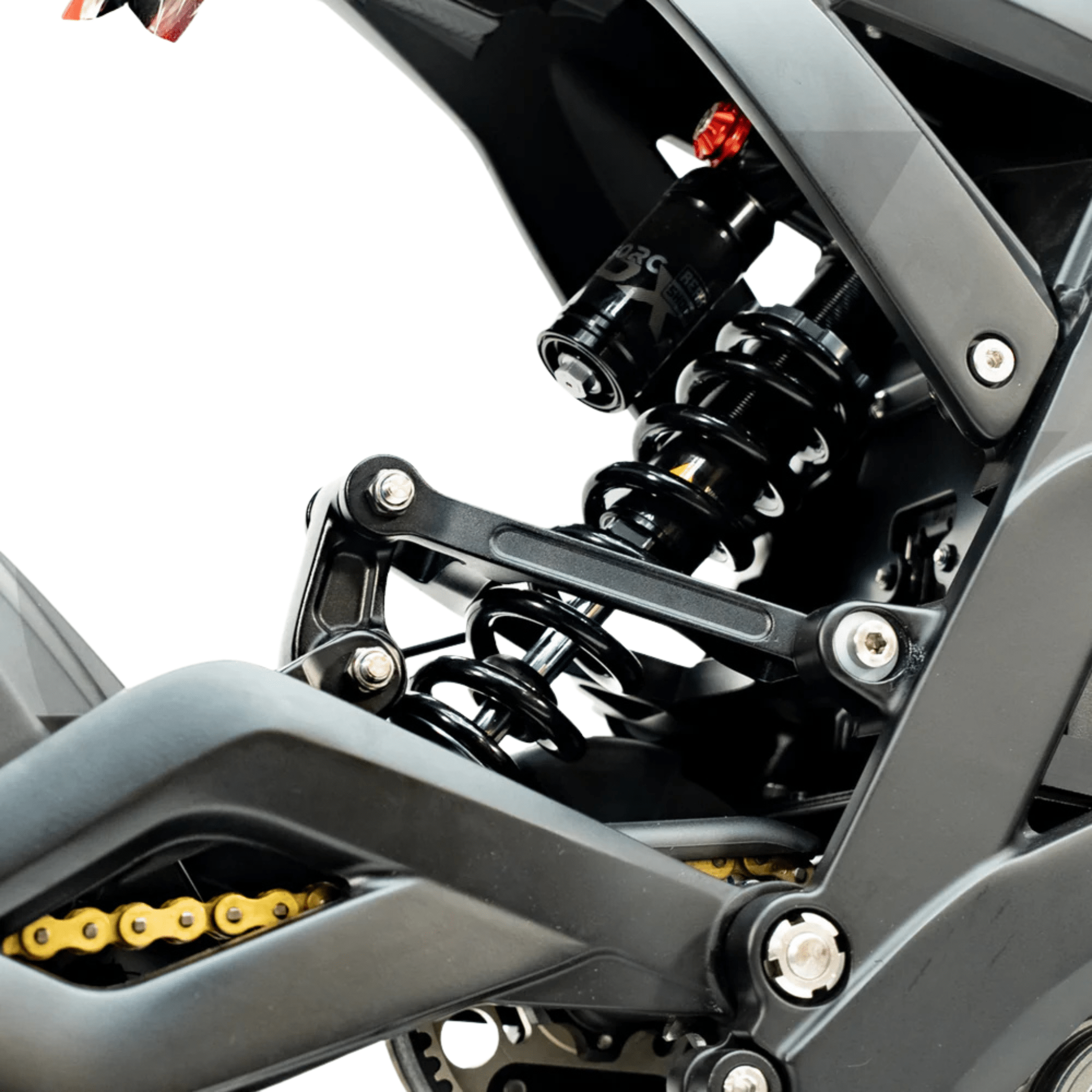

Rear Suspension

RFloXa RAB50RC

The fully adjustable RAB50RC rear shock is designed to maximize traction and stability while maintaining comfort over rough terrain.

Features include:

• External Nitrogen Reservoir
• Fully Adjustable Compression
• Fully Adjustable Rebound
• Multi-Link Rear Suspension
• 450 lb Spring Rate

Together, the Hawk33 fork and RAB50RC shock provide exceptional balance, predictability, and control for riders of every skill level.

---

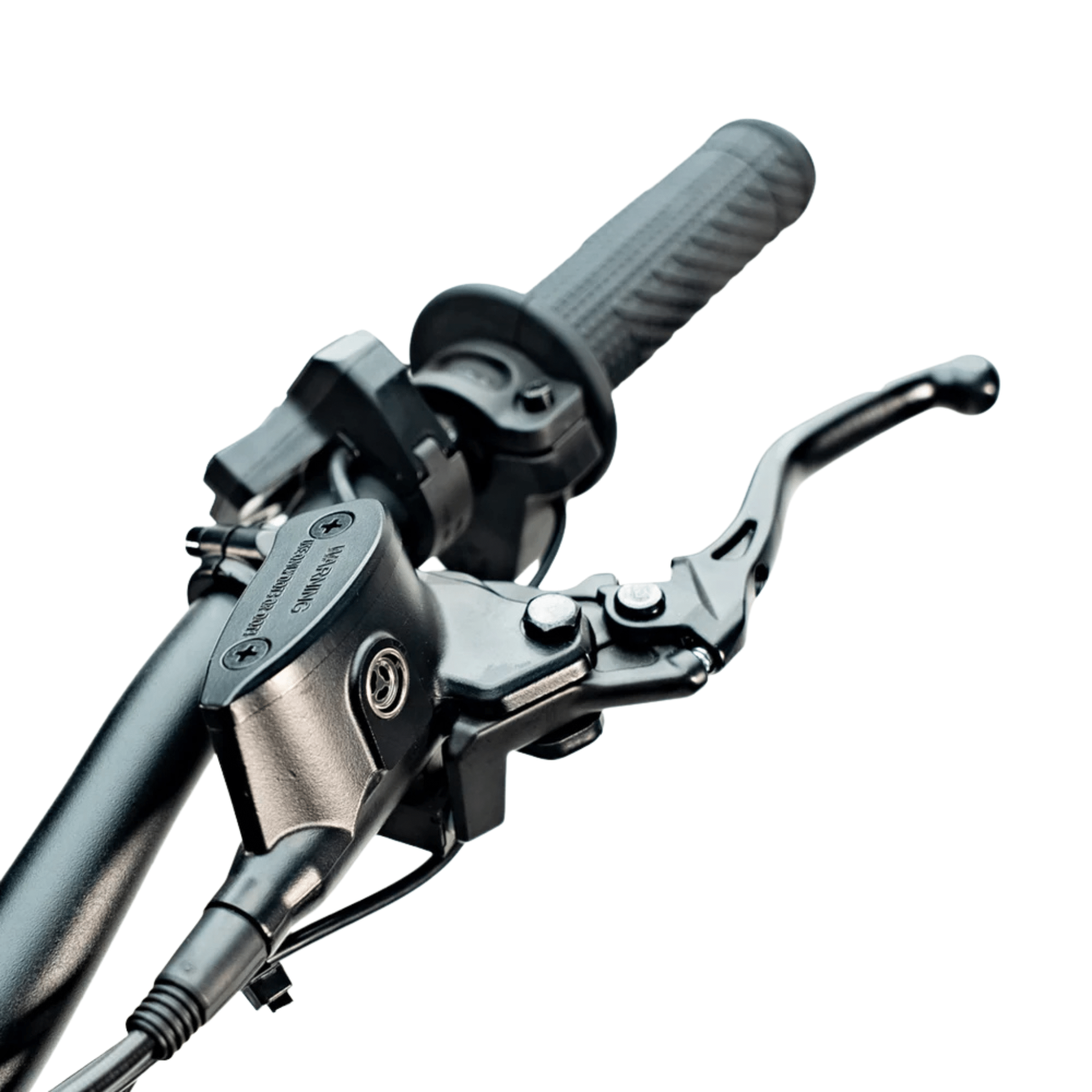

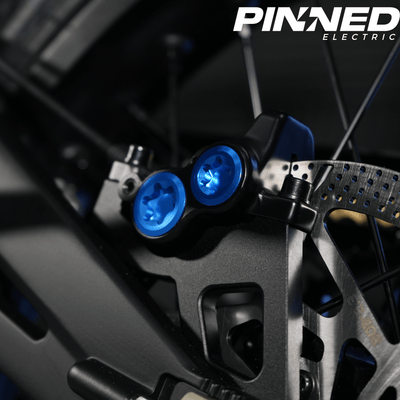

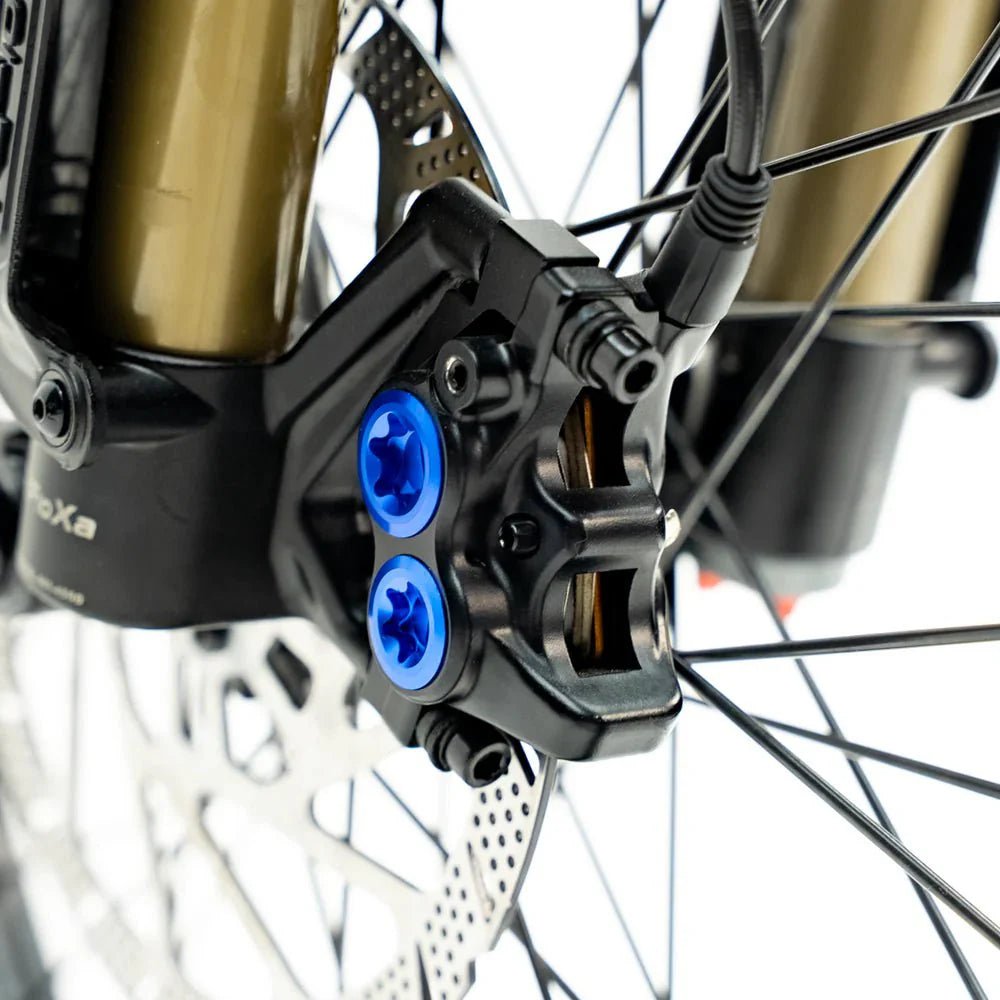

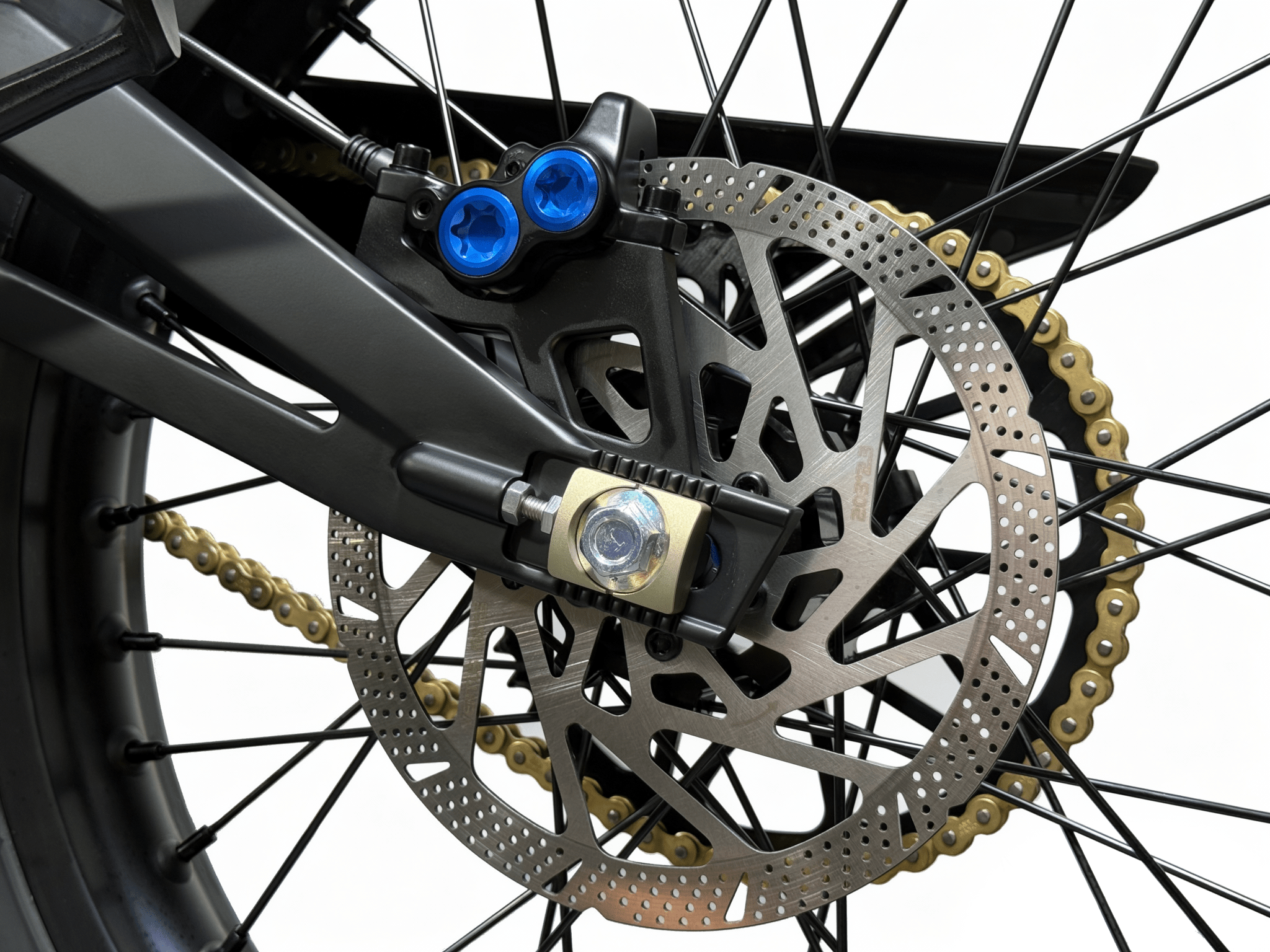

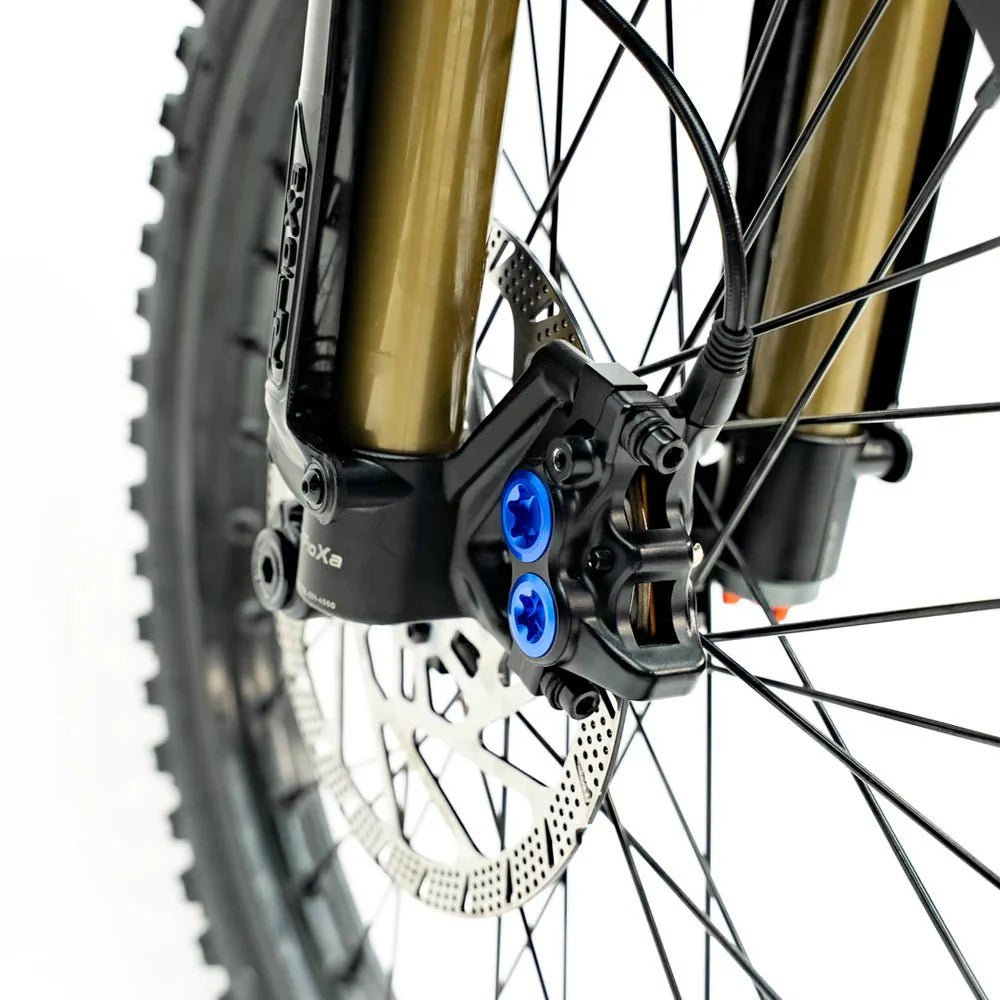

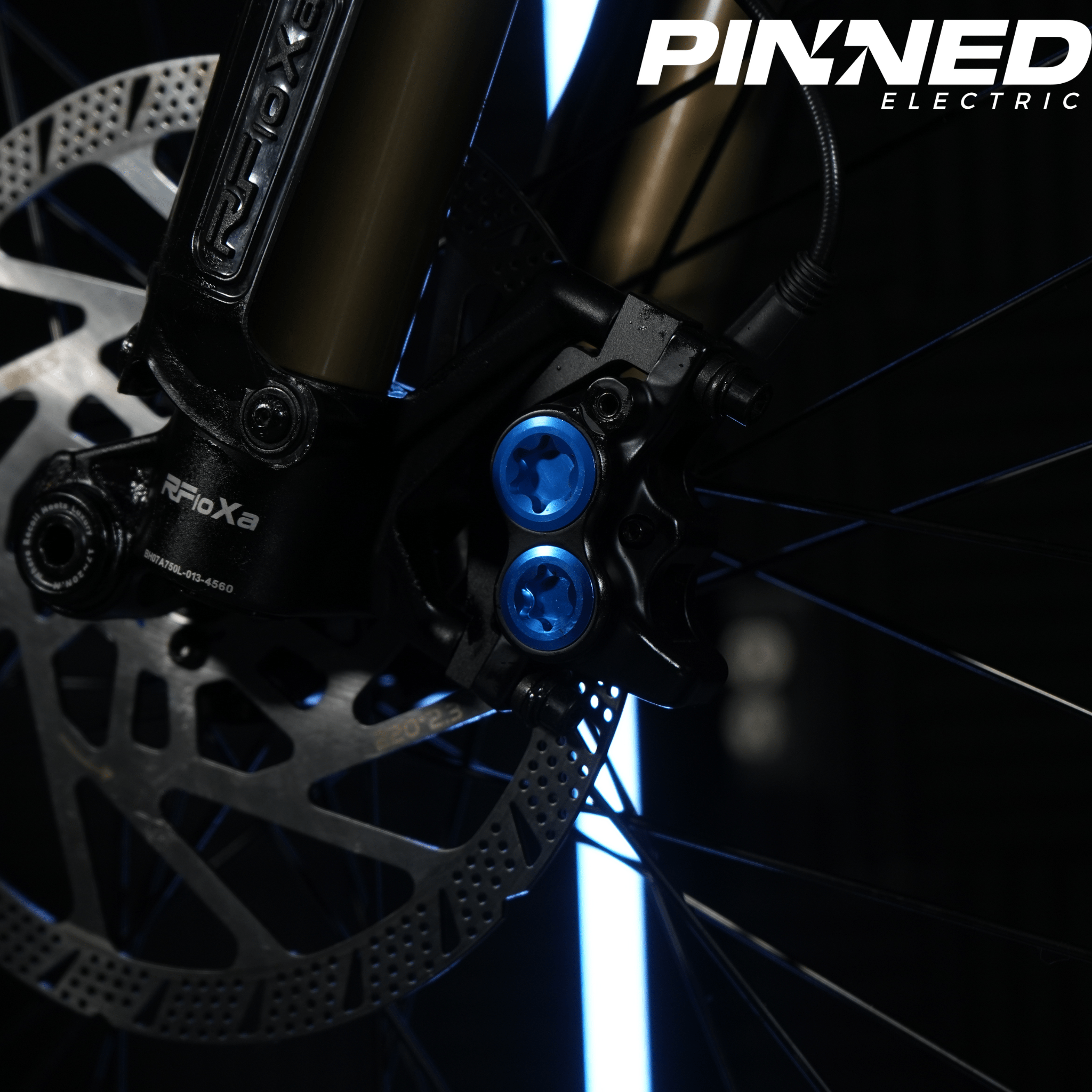

Upgraded Braking System

Stopping power has been significantly improved with an all-new braking package.

The V1+ EVO upgrades from the previous 74.2 mm brake mount to the new 95.5 mm brake mounting standard, allowing the use of larger, more powerful braking components.

The new system includes:

• Large LBN Four-Piston Hydraulic Brake Calipers
• 220 mm Front Rotor
• 220 mm Rear Rotor
• Increased braking force
• Improved modulation
• Greater heat capacity
• Better fade resistance during aggressive riding

Whether charging into corners or descending technical terrain, the upgraded braking system delivers confidence-inspiring control.

---

Lightweight Chassis

A lightweight forged aluminum chassis provides exceptional rigidity while minimizing overall weight.

Vehicle Specifications

• Weight (including battery): 72 kg (159 lbs)
• Wheelbase: 1250 mm
• Seat Height: 830 mm
• Ground Clearance: 275 mm
• Maximum Rider Weight: 110 kg

The optimized rider triangle delivers excellent comfort while maintaining aggressive handling characteristics.

---

Wheels & Drivetrain

The V1+ EVO combines lightweight forged aluminum wheels with a proven belt-and-chain drivetrain for maximum efficiency and durability.

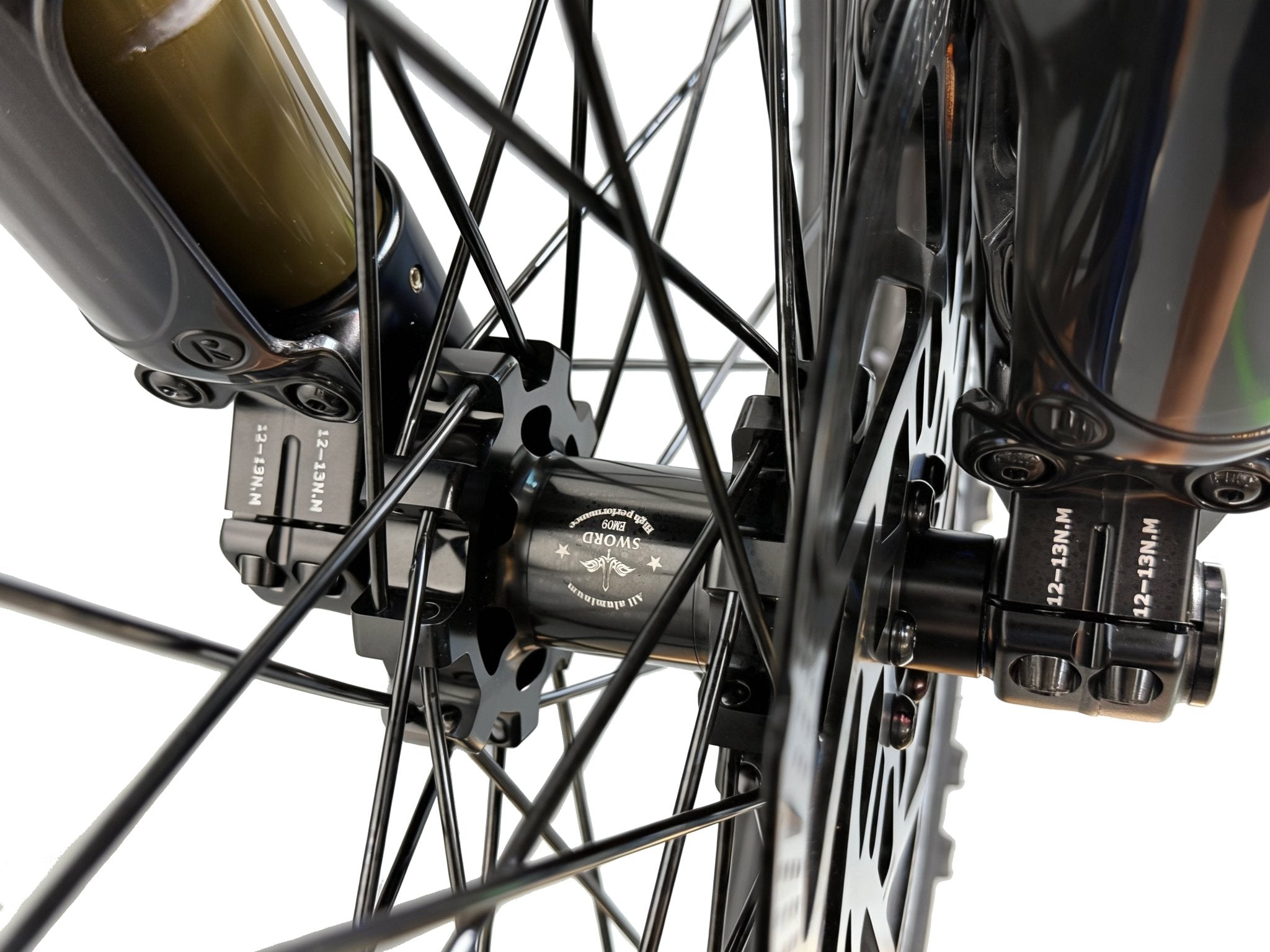

Wheels

• Forged Three-Spoke Aluminum Wheels
• Front: 19-inch
• Rear: 16-inch

Tires

• Front: 80/100-19
• Rear: 90/100-16

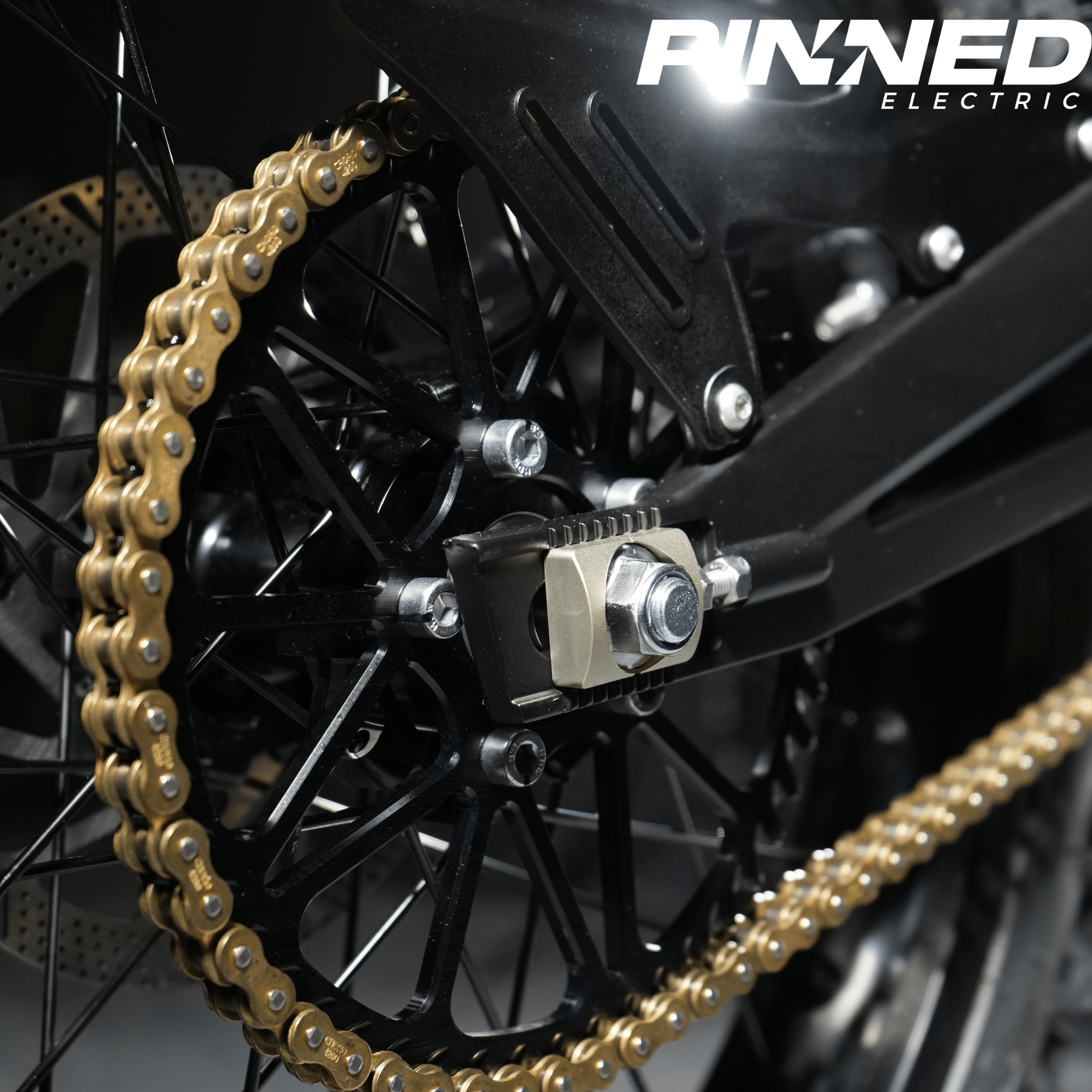

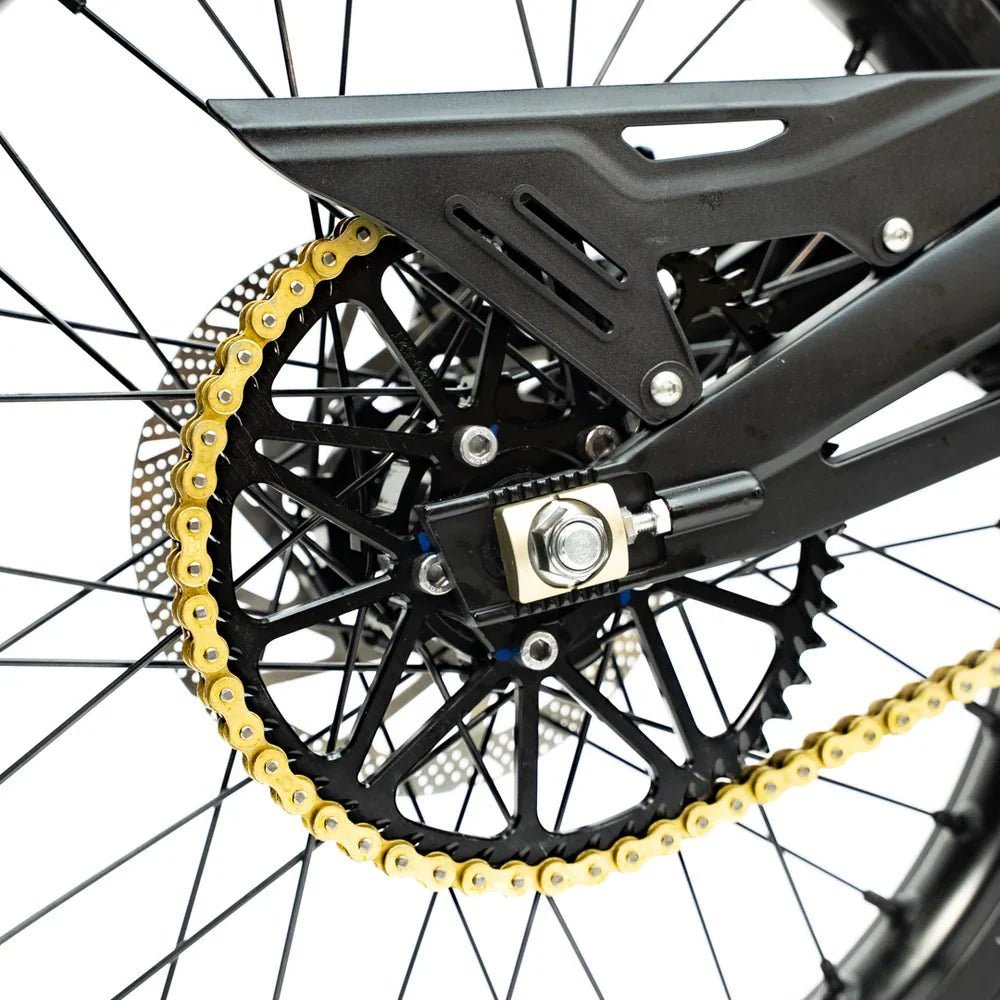

Drivetrain

• HTD 8M Primary Belt Drive
• 420 Secondary Chain Drive

This combination provides quiet operation, improved efficiency, and long-term durability.

---

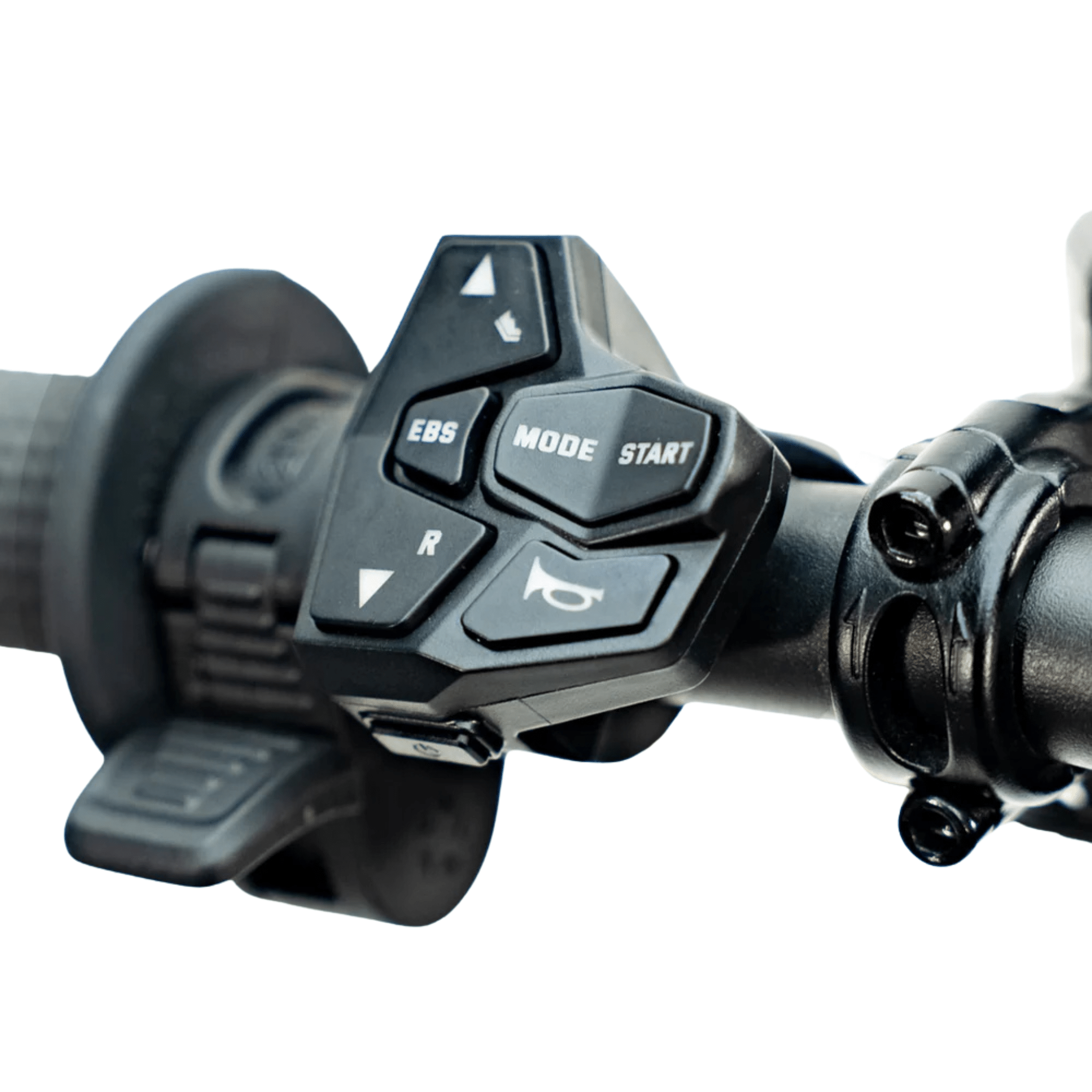

Smart Technology

The V1+ EVO integrates advanced rider technology without compromising simplicity.

Features include:

• Aetos Pro Smart Controller
• Bluetooth Mobile App Integration
• Wheelie Mode
• Adjustable Ride Maps
• Adjustable Power Delivery
• Adjustable Regenerative Braking
• Real-Time Diagnostics
• Over-the-Air Firmware Updates

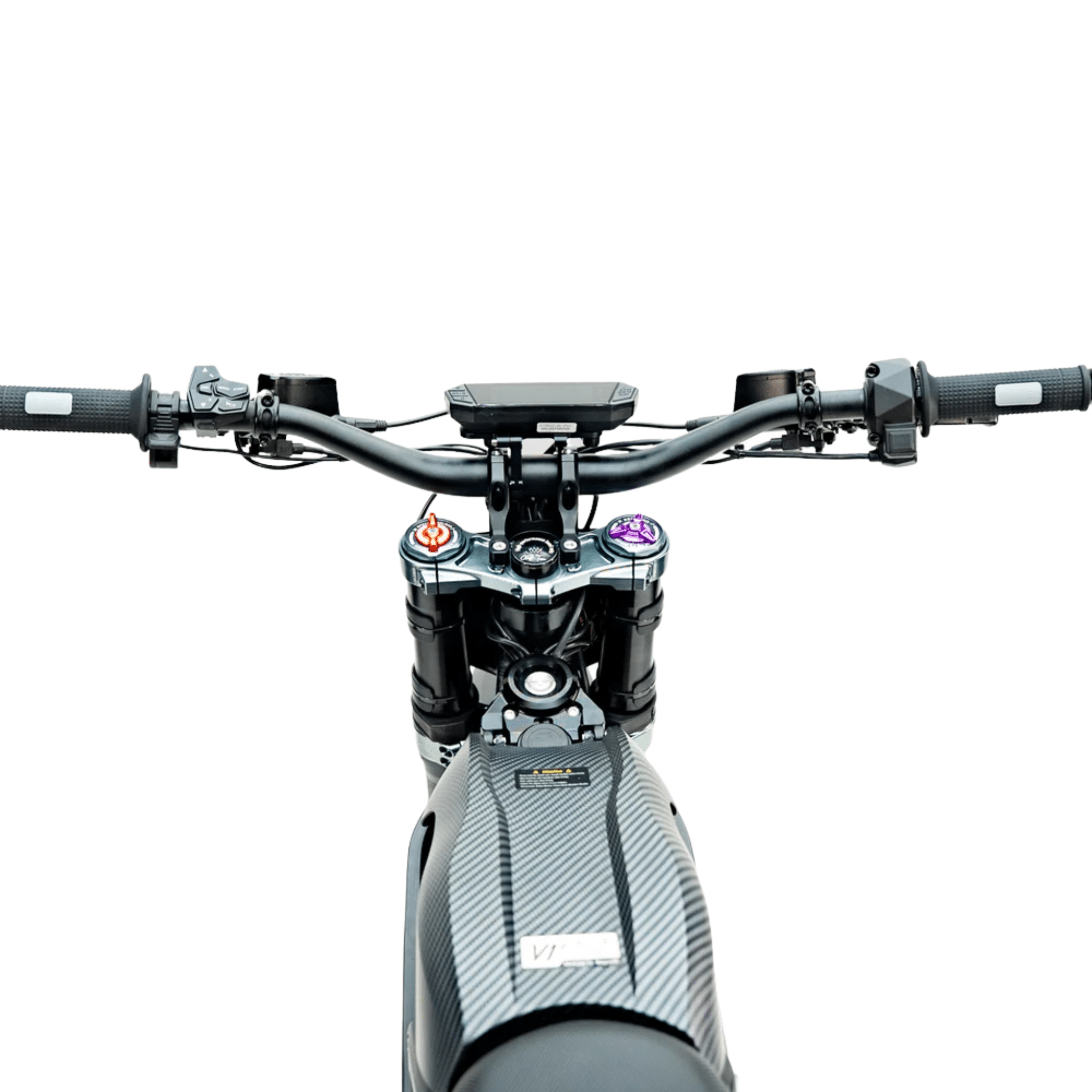

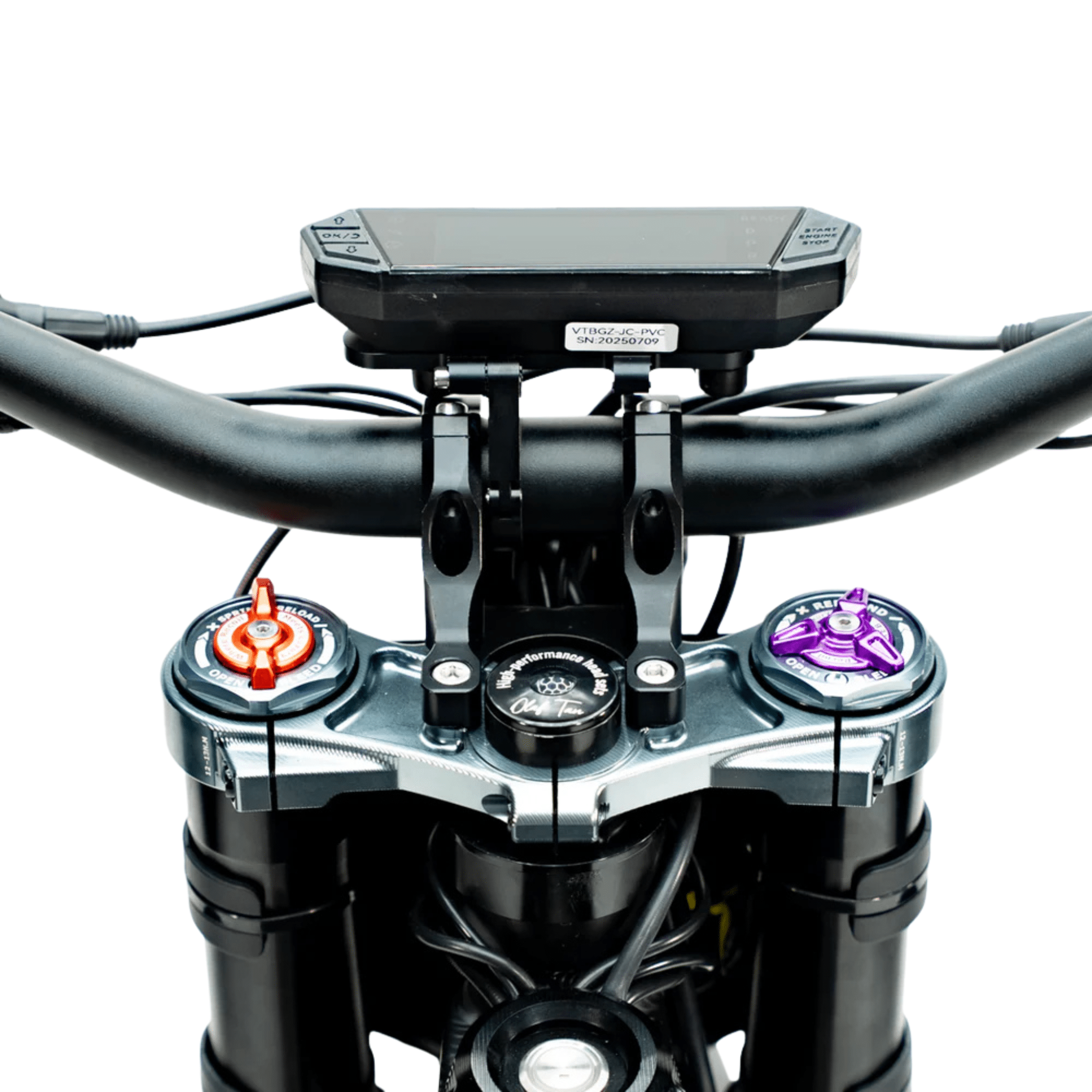

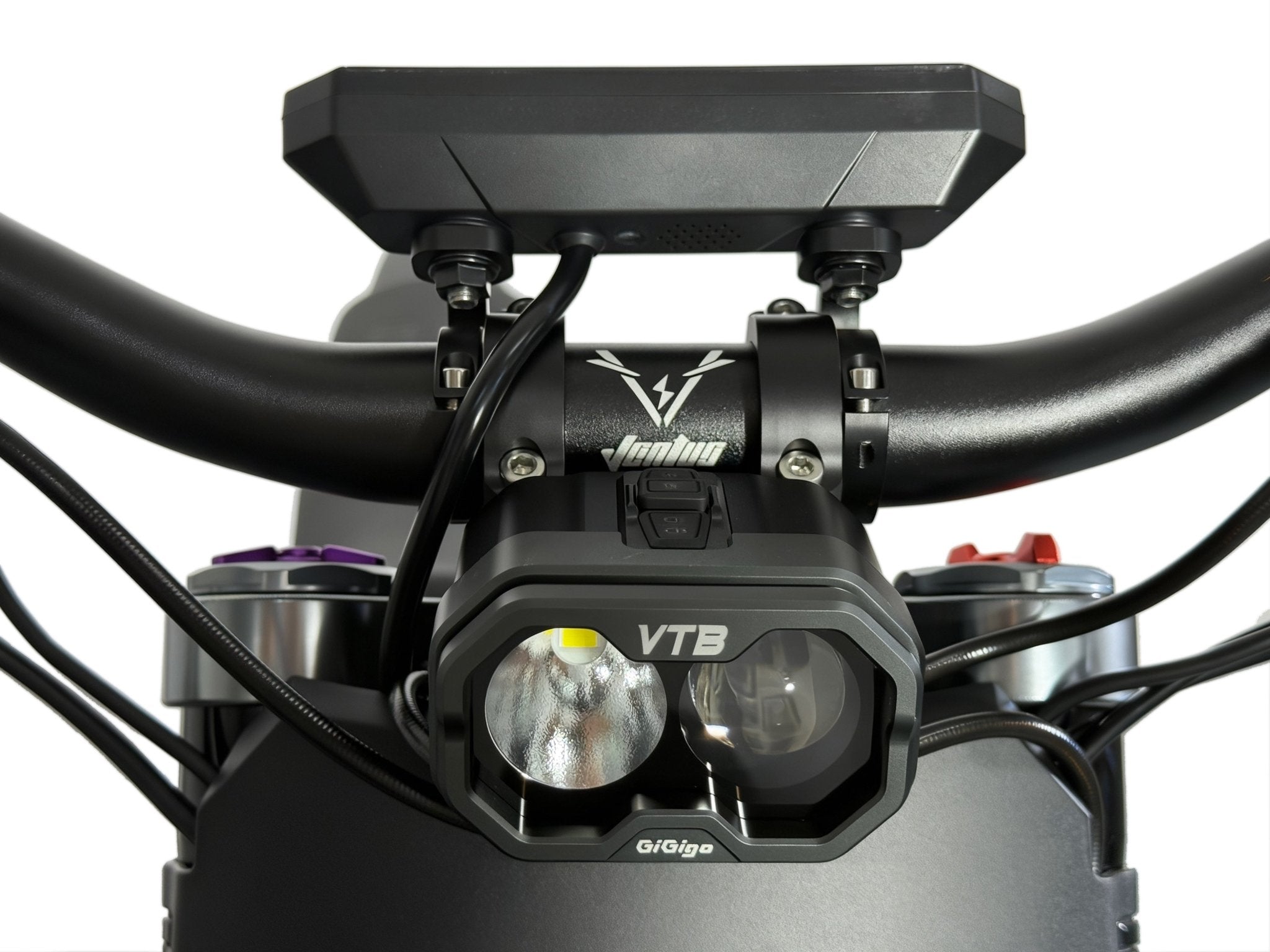

• TFT Ultra-Wide High-Definition Display

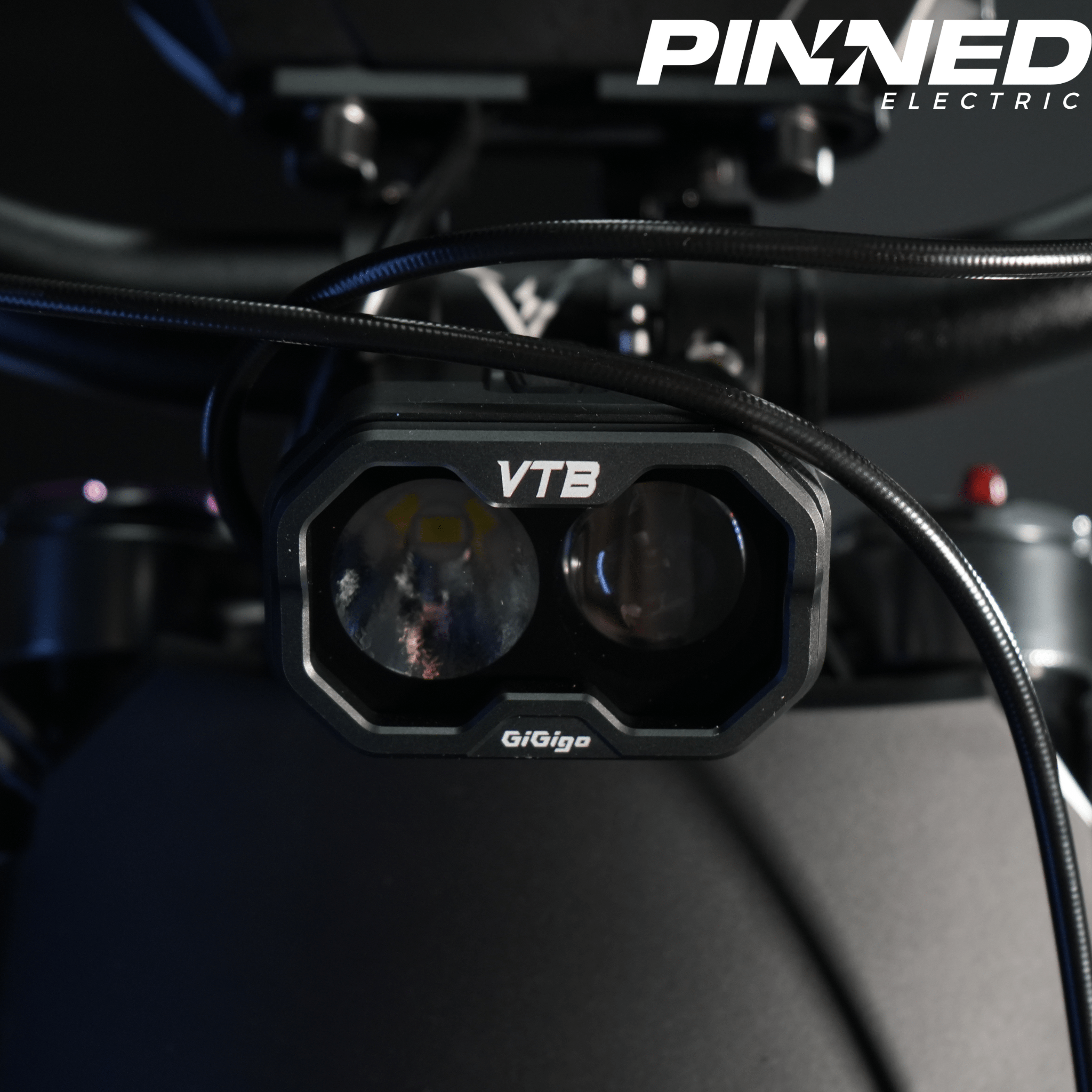

• Full LED Lighting
• 20W USB Fast Charging Port
• RS-485 Communication System
• IP65 Water Resistance

---
