Ventus One
Ventus One
Couldn't load pickup availability
SOLD OUT: Please visit Charged Powersport for preorders.
https://chargedpowersports.com/products/ventus-one-electric-motorcycle
Description
Item: Ventus One
Torque: 390N.M
Peak Power: 28,000W
WLTP Range: 115Km
Battery Voltage: 72V
Battery Capacity: 50Ah
Battery Weight: 69kg
Dimension: 1870*755*1088mm
Weight: 51.2kg (69 Kg with battery)
Weight Capacity: 110Kg
Ground Clearance: 275mm
Wheelbase： 1250mm
Seat Height: 830mm
Fork Suspension: 200mm
Rear Suspension: 85-290mm
Motor: Permanent Magnet Synchronous Motor (PMSM)
Motor Power: 28,000W
Controller: Sine wave controller
Max Speed: 130 Km/h
Moderate-range battery life: 115km (40km/h)
Battery Type: Lithium-ion battery
Charging Time: 4.2h

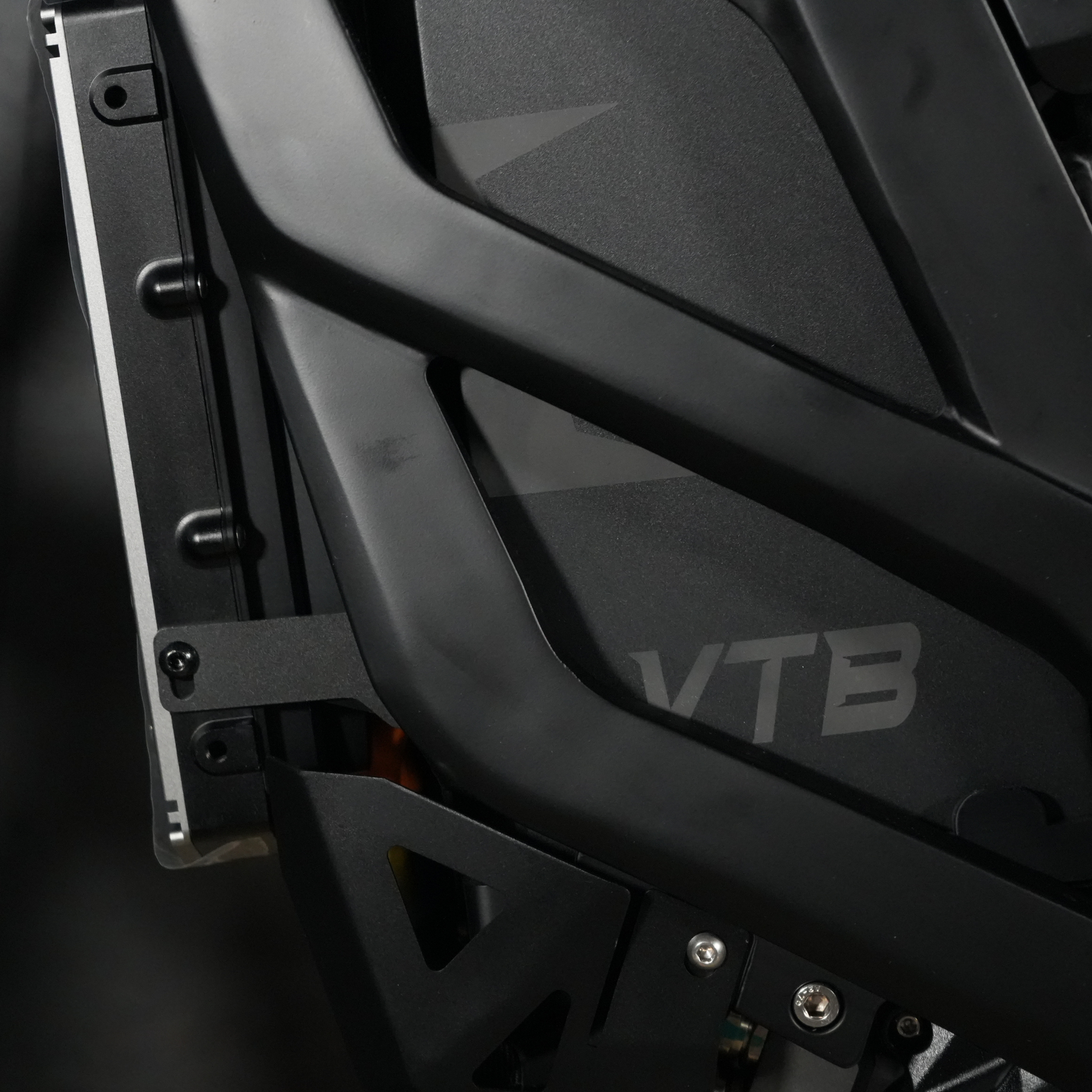

Frame: Aluminum alloy
Gear: Multi-speed internal hub allows 3 and 5 speeds
Cassette：70/100-19 （front) and 90/100-16 (Rear)
Road slicks: 70/90-17 （front) and 90/80-17 (Rear)
Unlock: Near unlocking and PIN unlocking
- Every Ventus One bike is fully equipped coming out of the factory with ample 20 kw power.
- Made of 27100 Samsung cells, Ventus one has a large battery capacity, 50Ah, perfect for long-distance ride.
- The controller program provides a smooth and easy user experience after it was debugged by professional ridders. The controlling APP allows great flexibility in configuring settings.
- The electronic linear brake is as powerful as hydraulic brake, saving its battery usage by 30%.

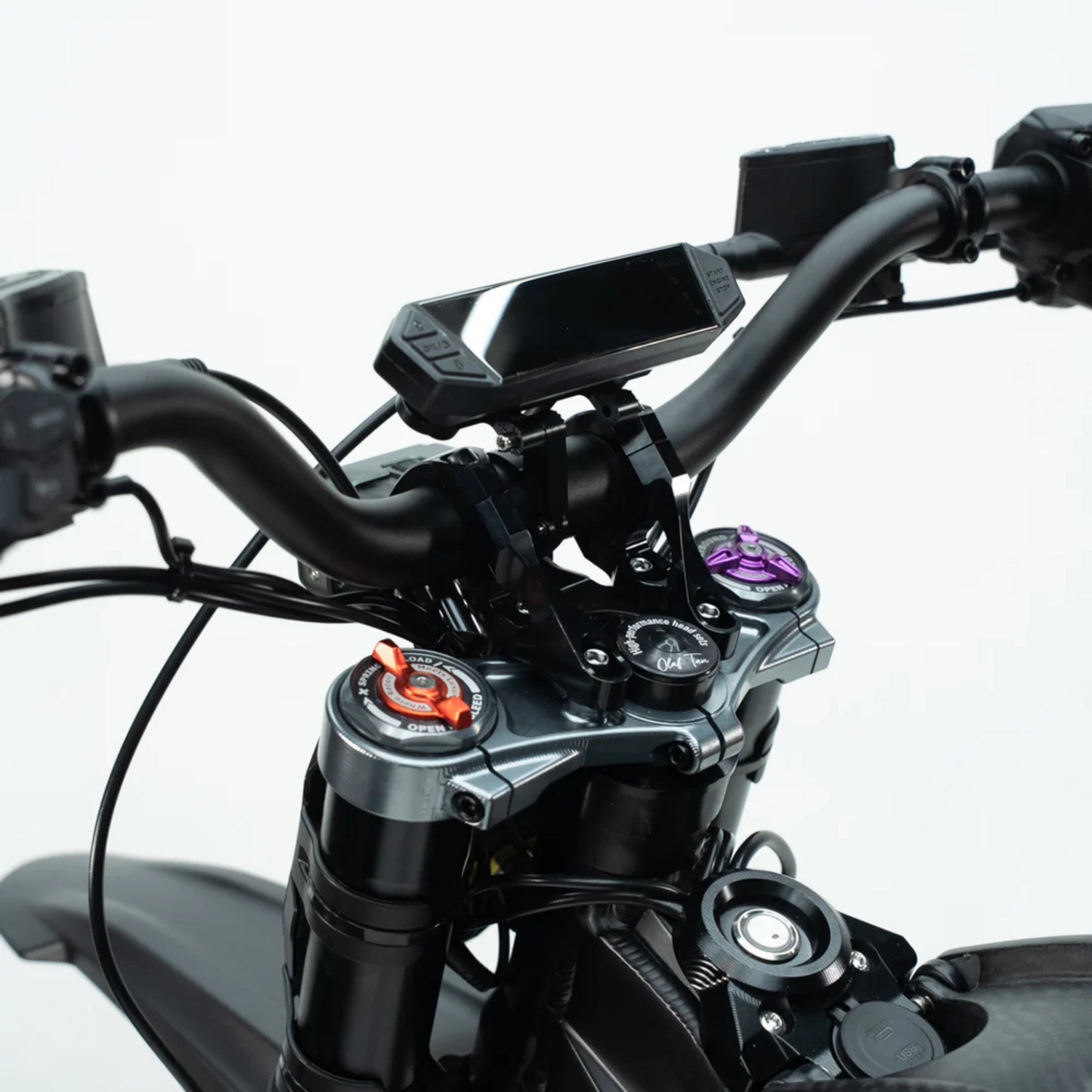

- Its multifunctional colored dashboard connects with the battery by bluetooth and demonstrates real-time battery capacity.
- Near your phone or input PIN to unlock the bike. Key is no longer a problem!

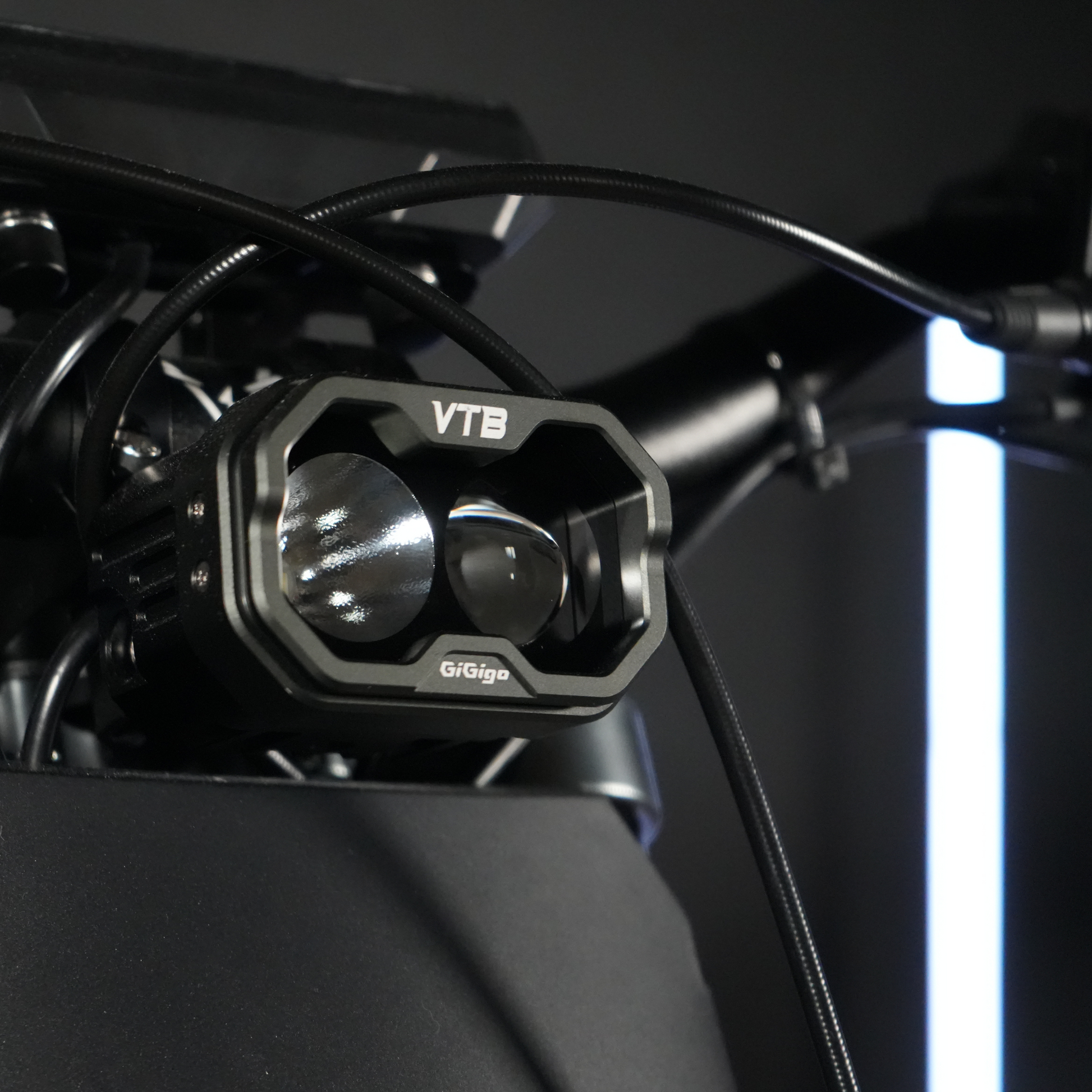

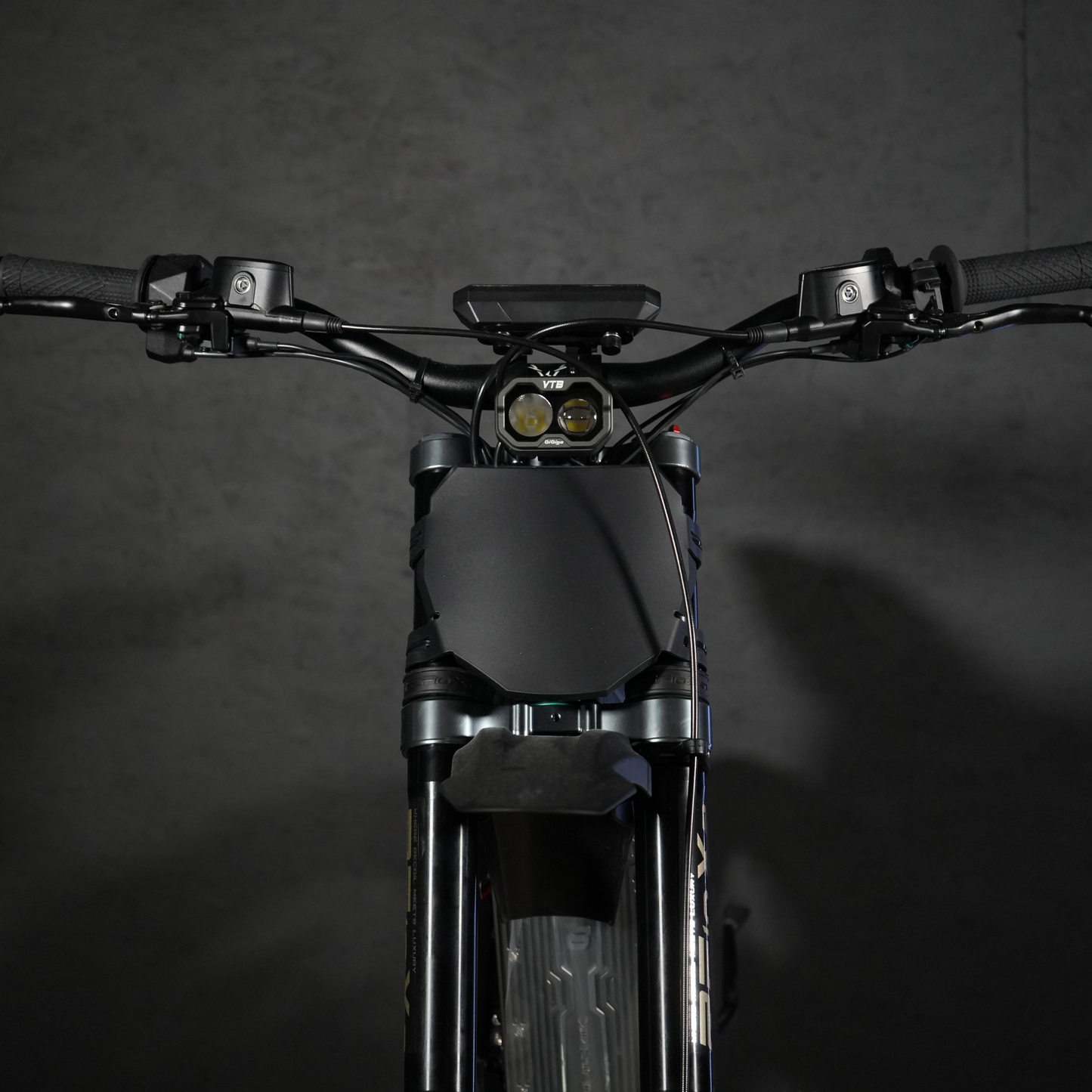

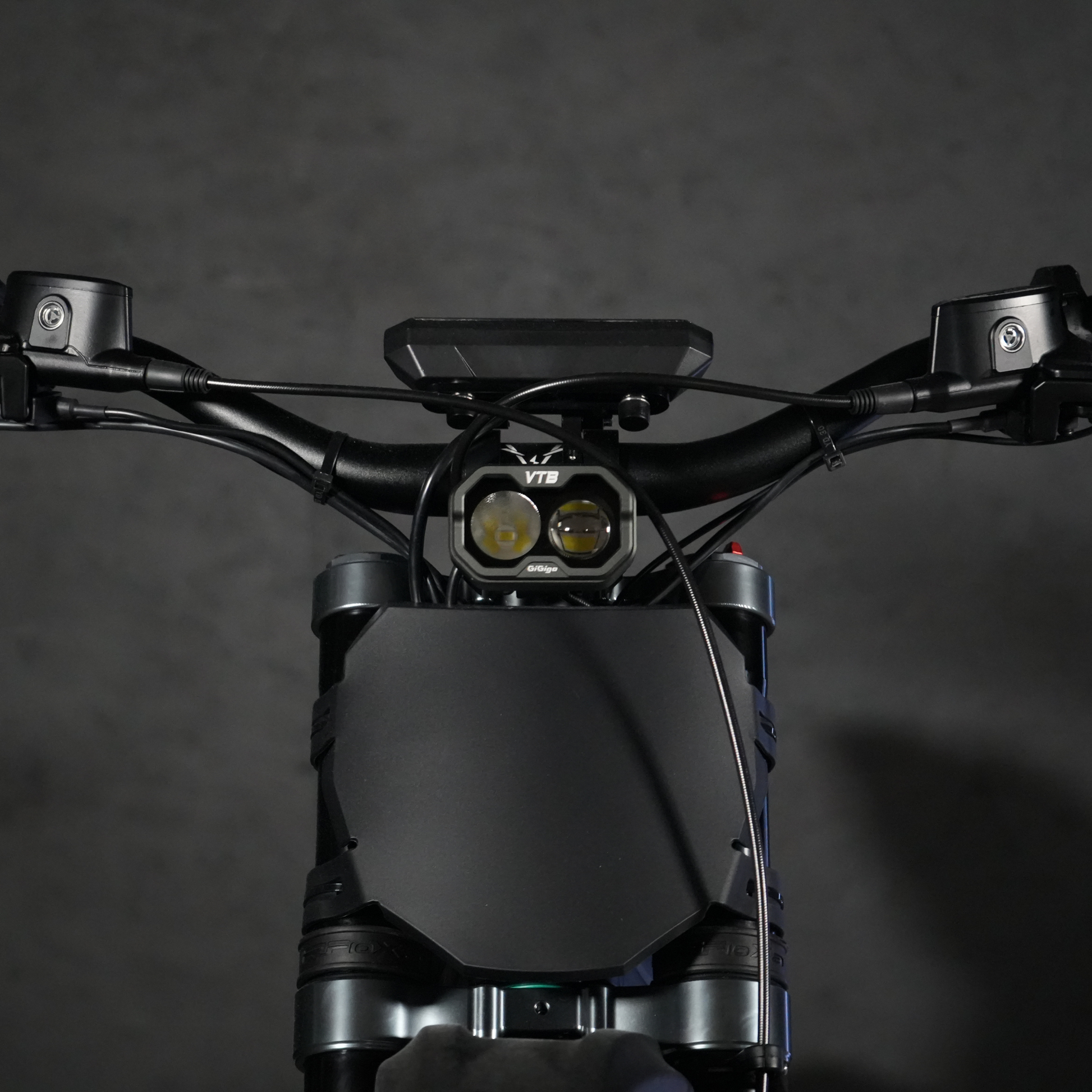

- Premium GiGigo headlight, made of 40W LED bulbs. The reflector and lens work together to focus and distribute the light beam in a controlled pattern, ensuring optimal visibility without blinding oncoming drivers.

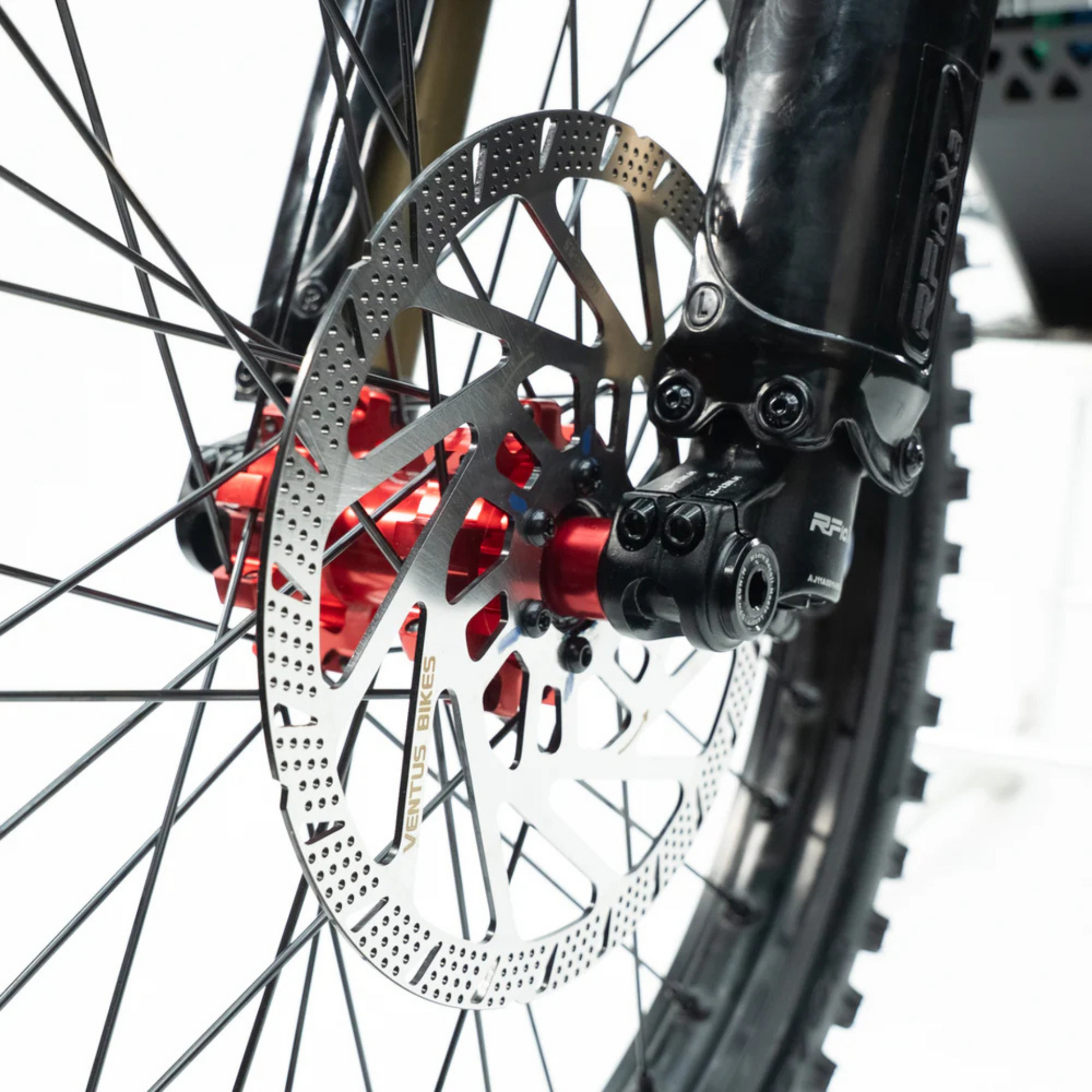

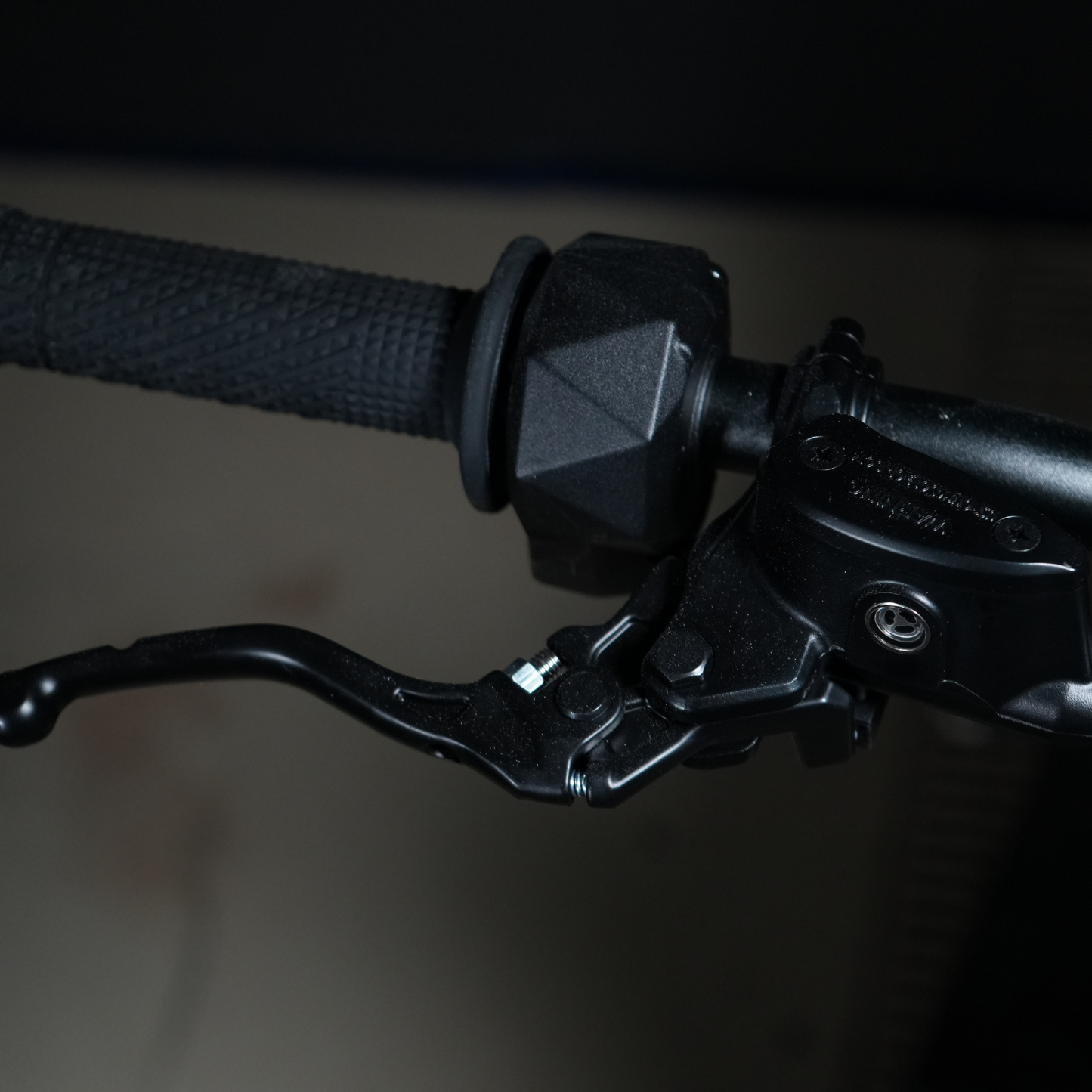

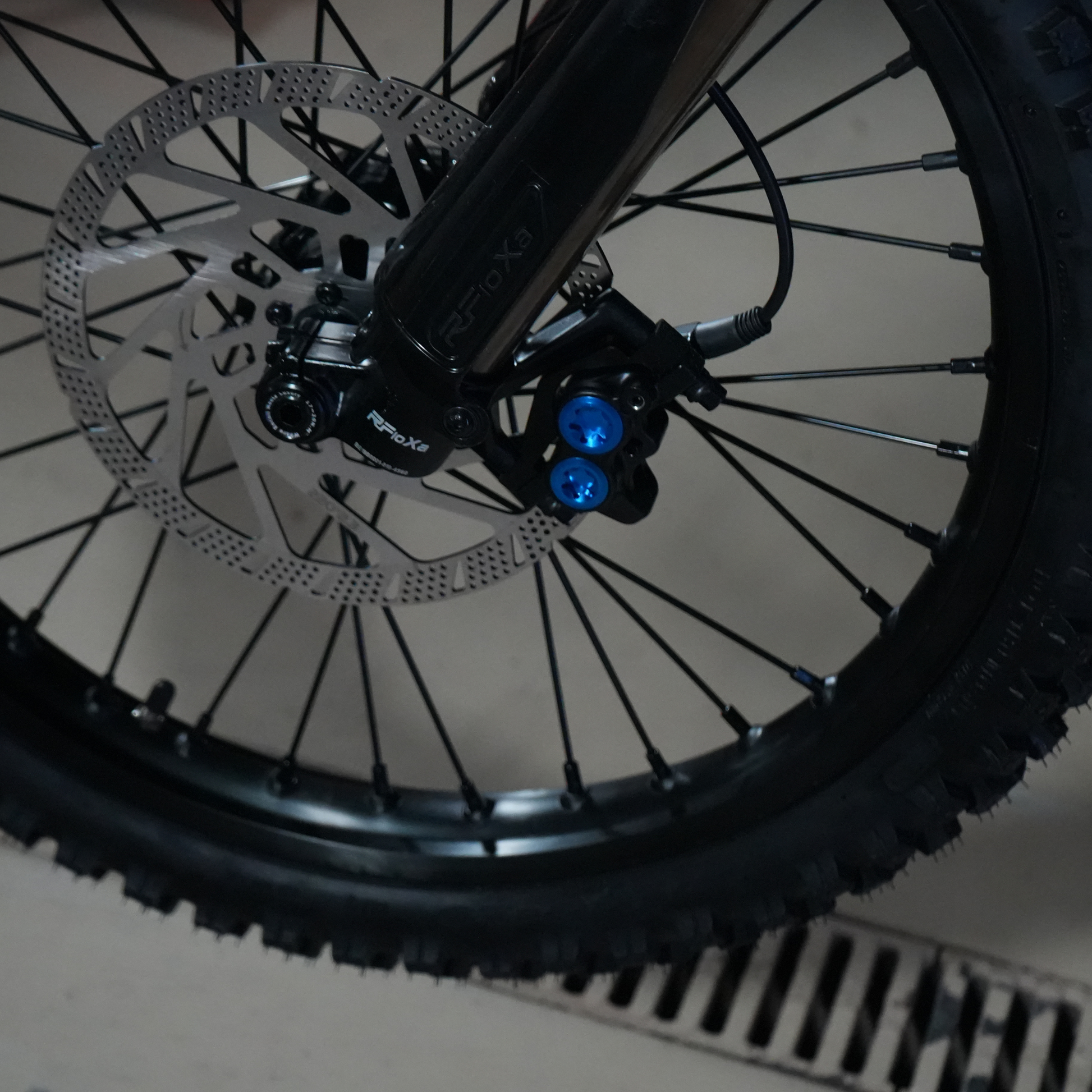

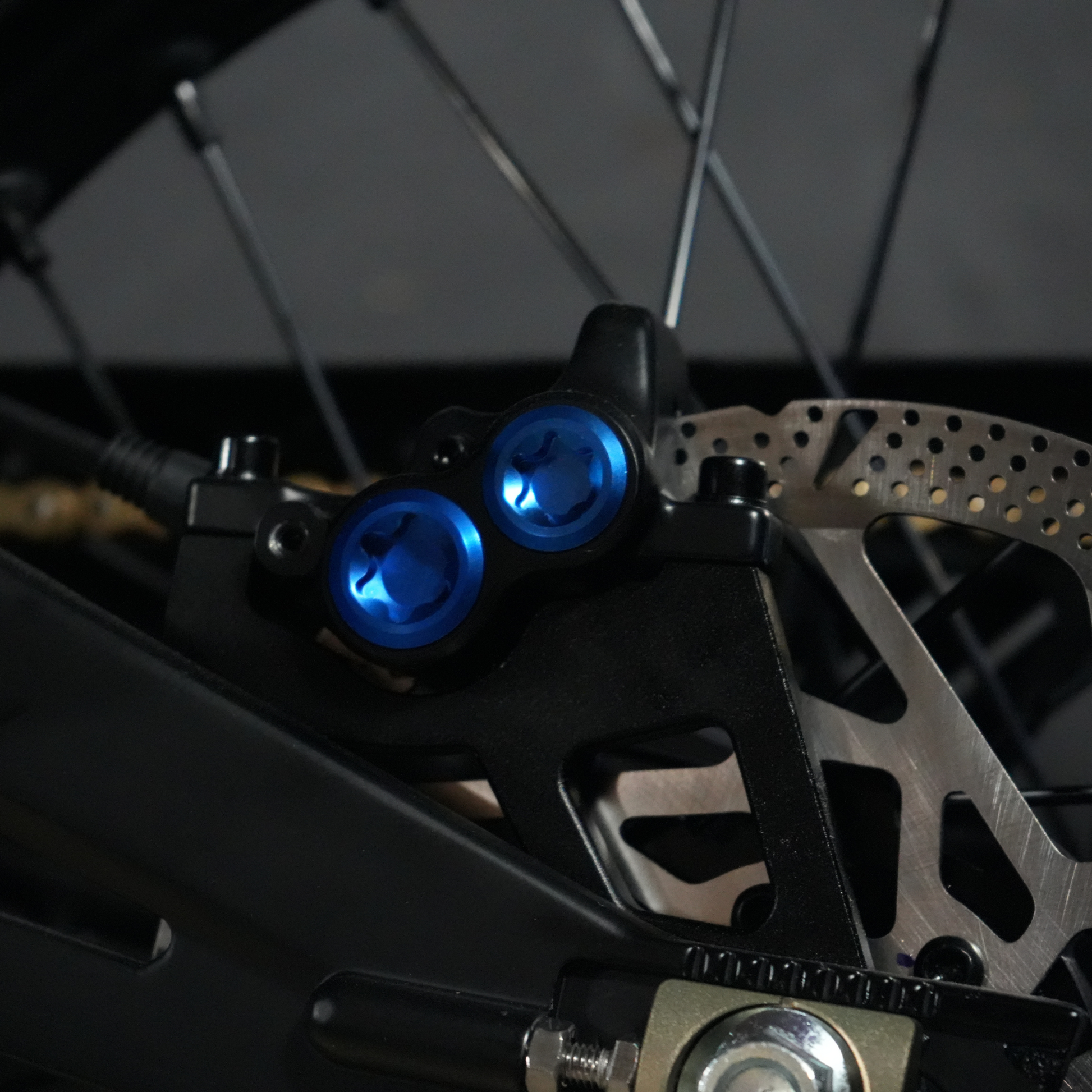

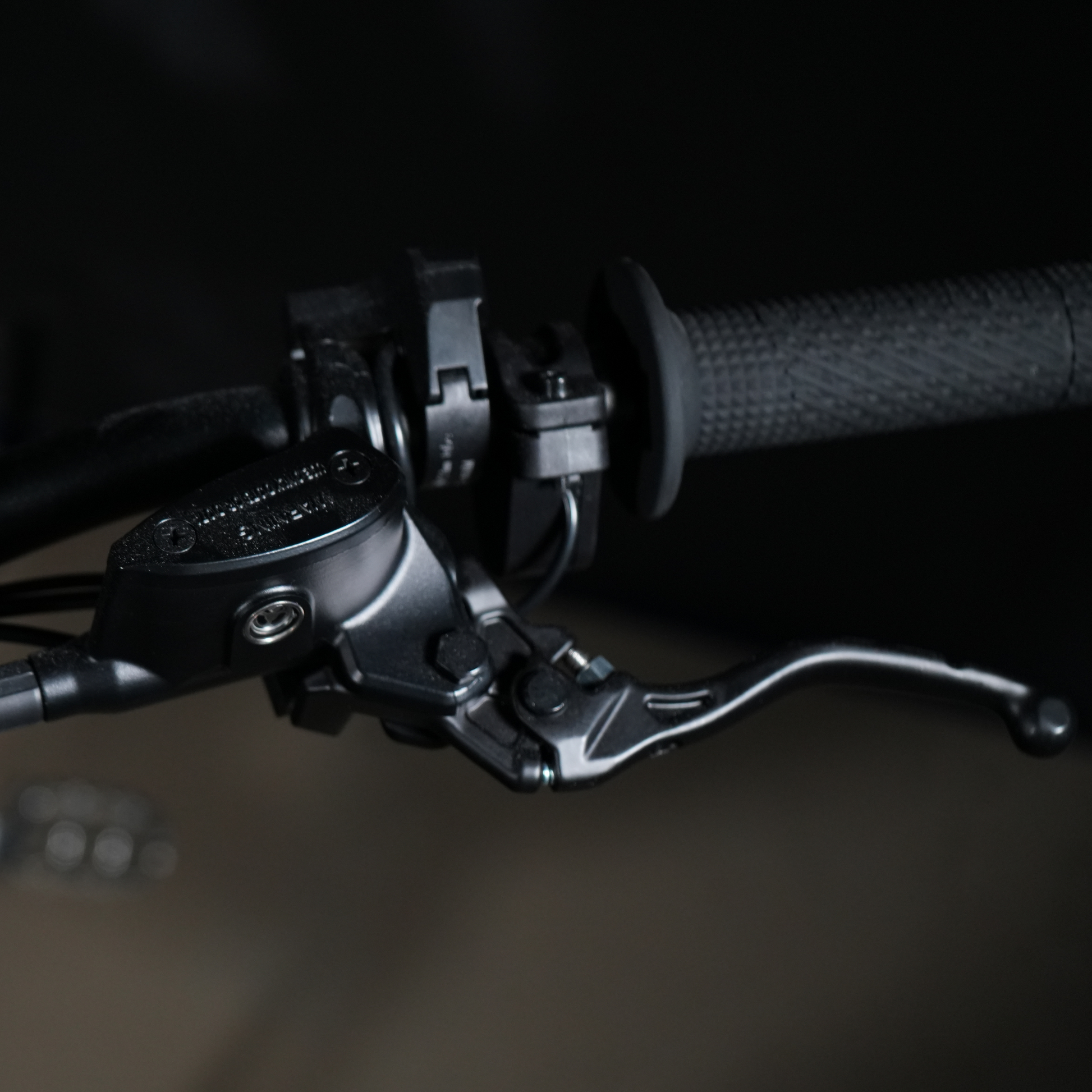

- Ultra strong hydraulic brakes offer immediate stop with endurable brake pads and excellent high-performance.
- The controller and dashboard supports OTA remote update and you can customize boot animation.
Ventus One General Specification
| Vehicle Model | Ventus One (V1) |
| Dimensions | 1870mm*755mm*1088mm |
| Total Weight/Including Battery | 51.2kg (113lbs) /69kg (152lbs) |
| Maximum Load Capacity | 110kg (220lbs) |
| Minimum Ground Clearance | 275mm |
| Wheelbase | 1250mm |
| Seat Height | 830mm |
| Front Fork Travel | 200mm |
| Rear Suspension/Wheel Travel | 85/290mm |
| Power System | High-speed Permanent Magnet Synchronous Motor + Sinusoidal Vector Controller |
| Maximum Output Power | 28,000W |
| Maximum Torque of the Driving Wheel | 390N.m |
| Maximum Speed | 130km/h |
| Medium-speed Range | 115km@40km/h |
| Tire Specifications | 70/100-19, Rear 90/100-16 |
| Unlocking Method | Sensory Unlocking + Password Unlocking |
| Torque of the Driving Wheel | 390N.M |
| Peak Power | 20000W |
| Range | 115Km |
| High-performance lithium battery | 72V50Ah |
| Ultra-lightweight | 69kg |
| High Thrust-to-Weight ratio | 0.39 |
Ventus One Vehicle Specification
| Chassis & Swingarm | Forged Aluminum |
| Chassis Surface & Colour Processing | Anodic Oxidation |

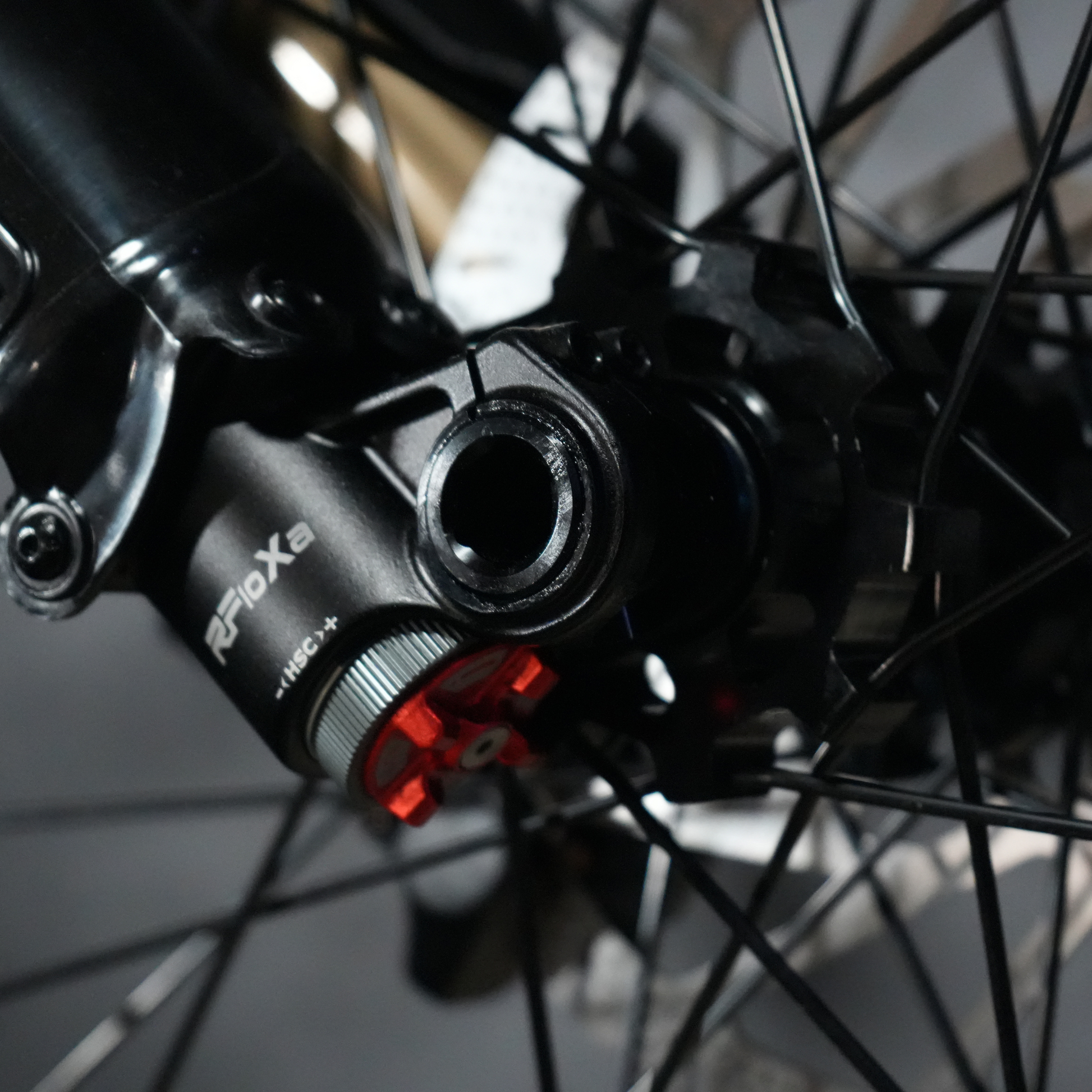

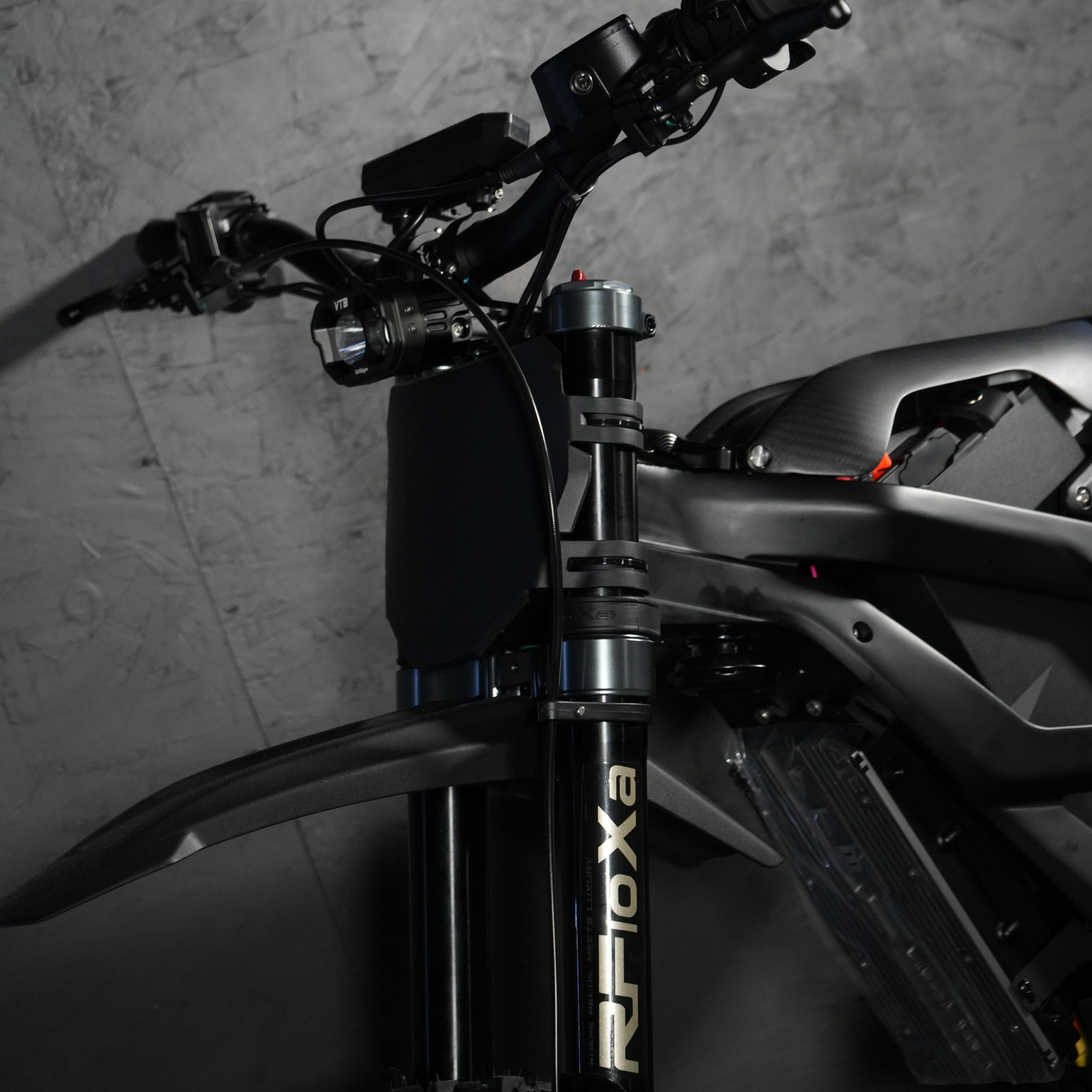

| Front Suspension | KKE or DNM, Adjustable for Preload & Rebound |

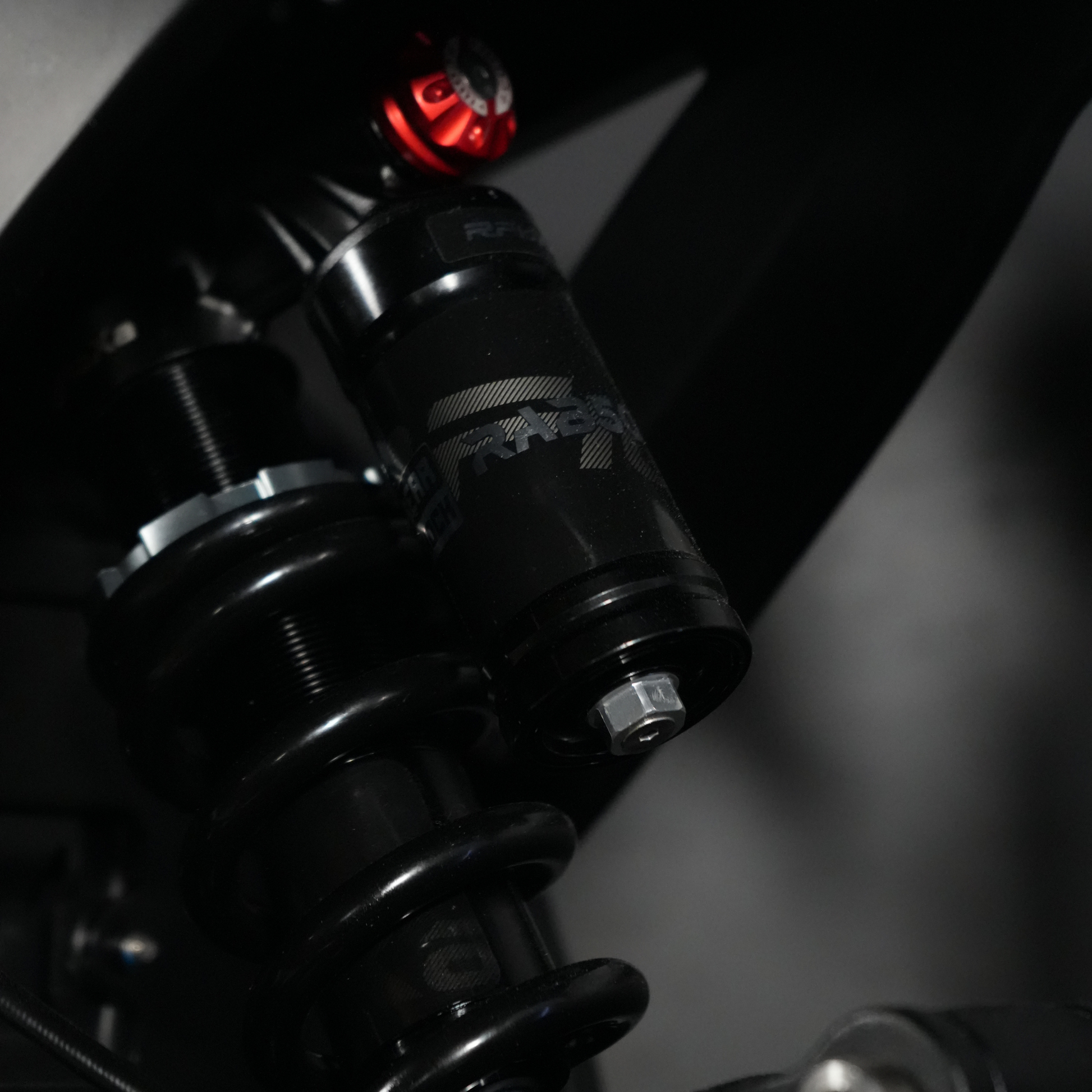

| Rear Shock Absorber | KKE or DNM Shock with TR Suspension Link System, Adjustable for Compression & Rebound |

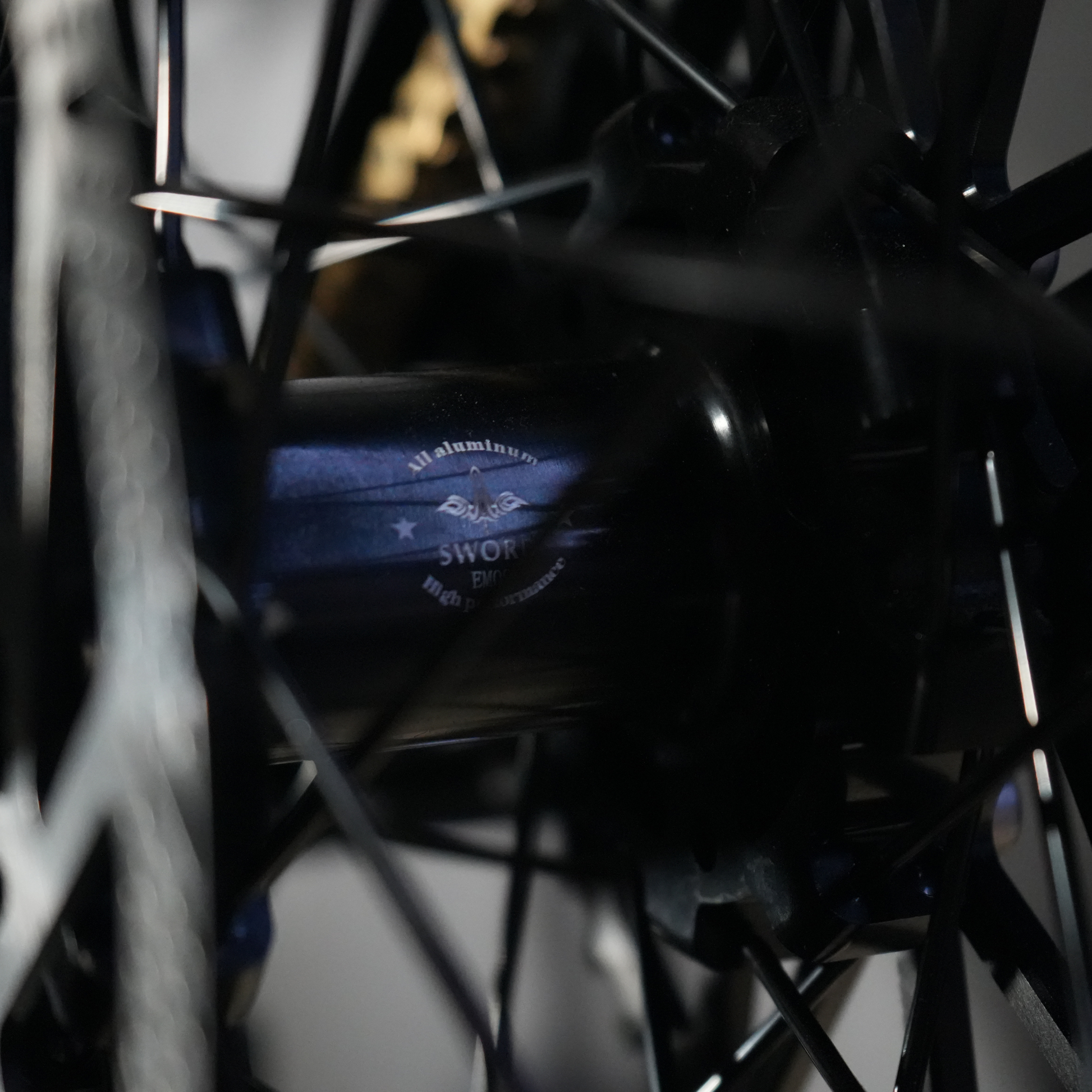

| Wheel Type & Size | 19 x 1.4 Wire-Spoke Wheels Front/Rear, Alloy Hubs |
| Tire Size | 70/100-19 Front/Rear |
| Max Range | 100km @ 32km/h depending upon terrain |
| Net Weight | 47kg (Plus Battery |
| Max Load | 100kg (220 lbs.) |
| Max Climbing Angle | 45 degrees |

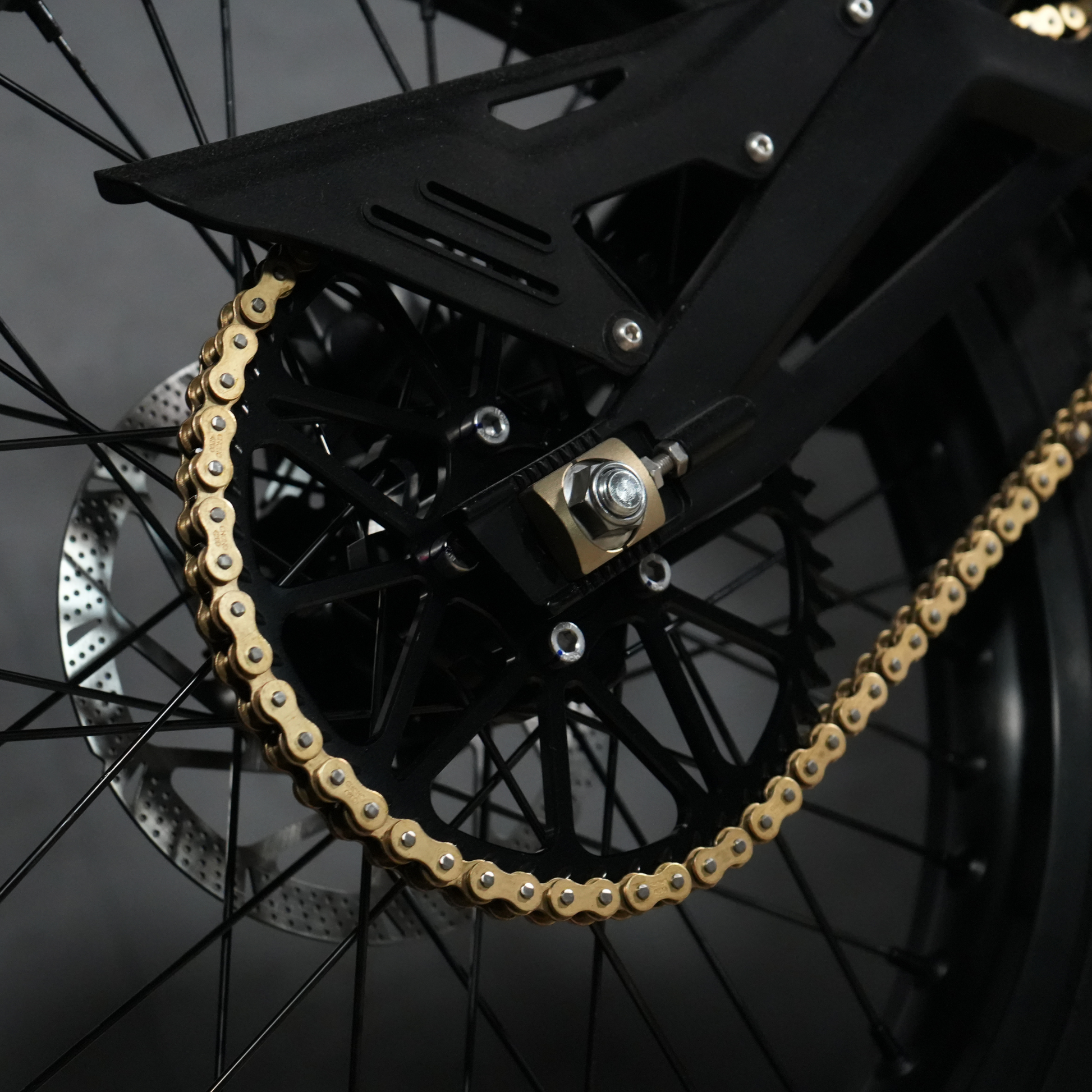

| Rear Sprocket | 48T |
| Side Stand | With Kill Switch |
| Vehicle Dimensions | 1,870mm x 780mm x 1,040mm |
| Minimum Ground Clearance | 270mm |
| Wheelbase | 1,260mm |
| Seat Height | 84-88cm |

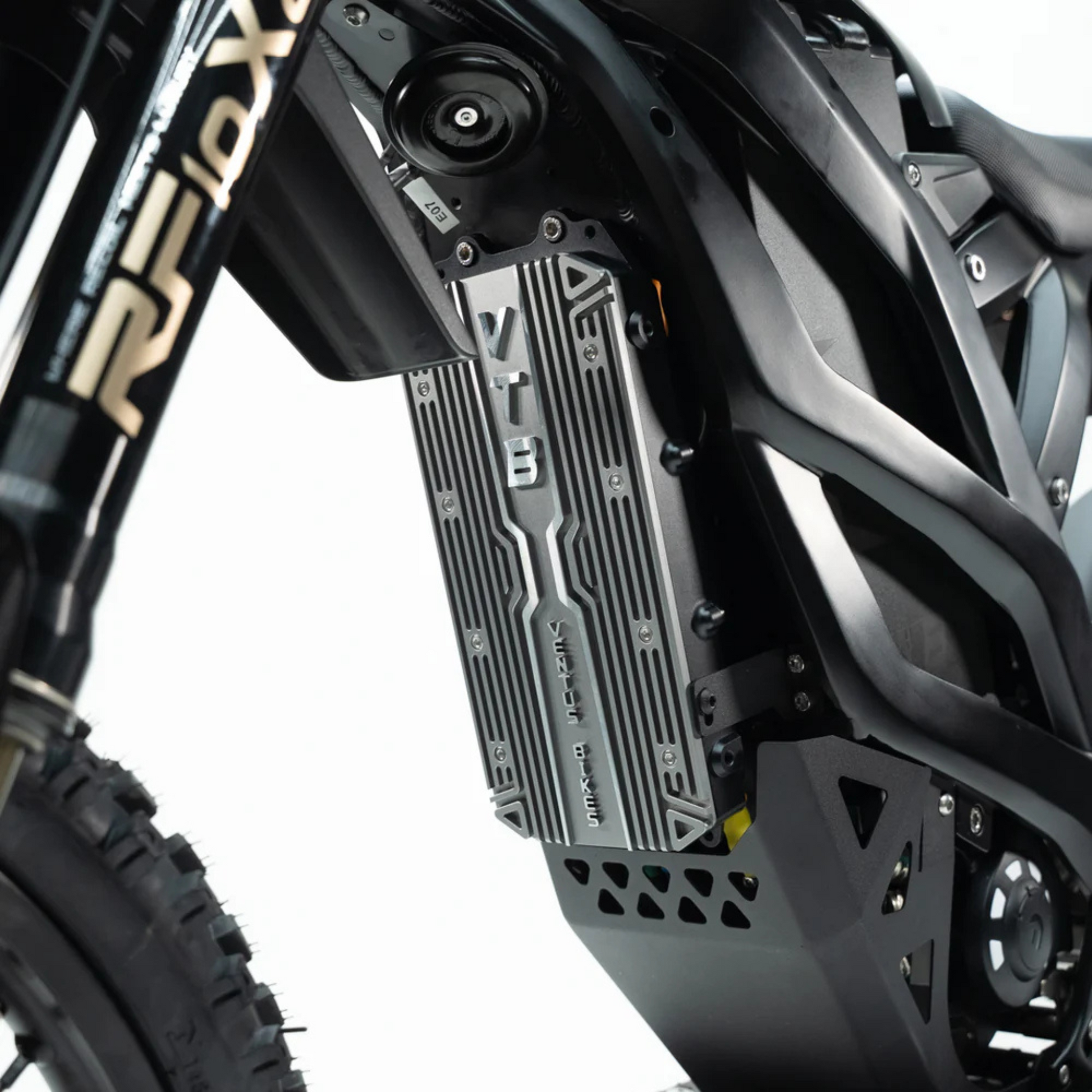

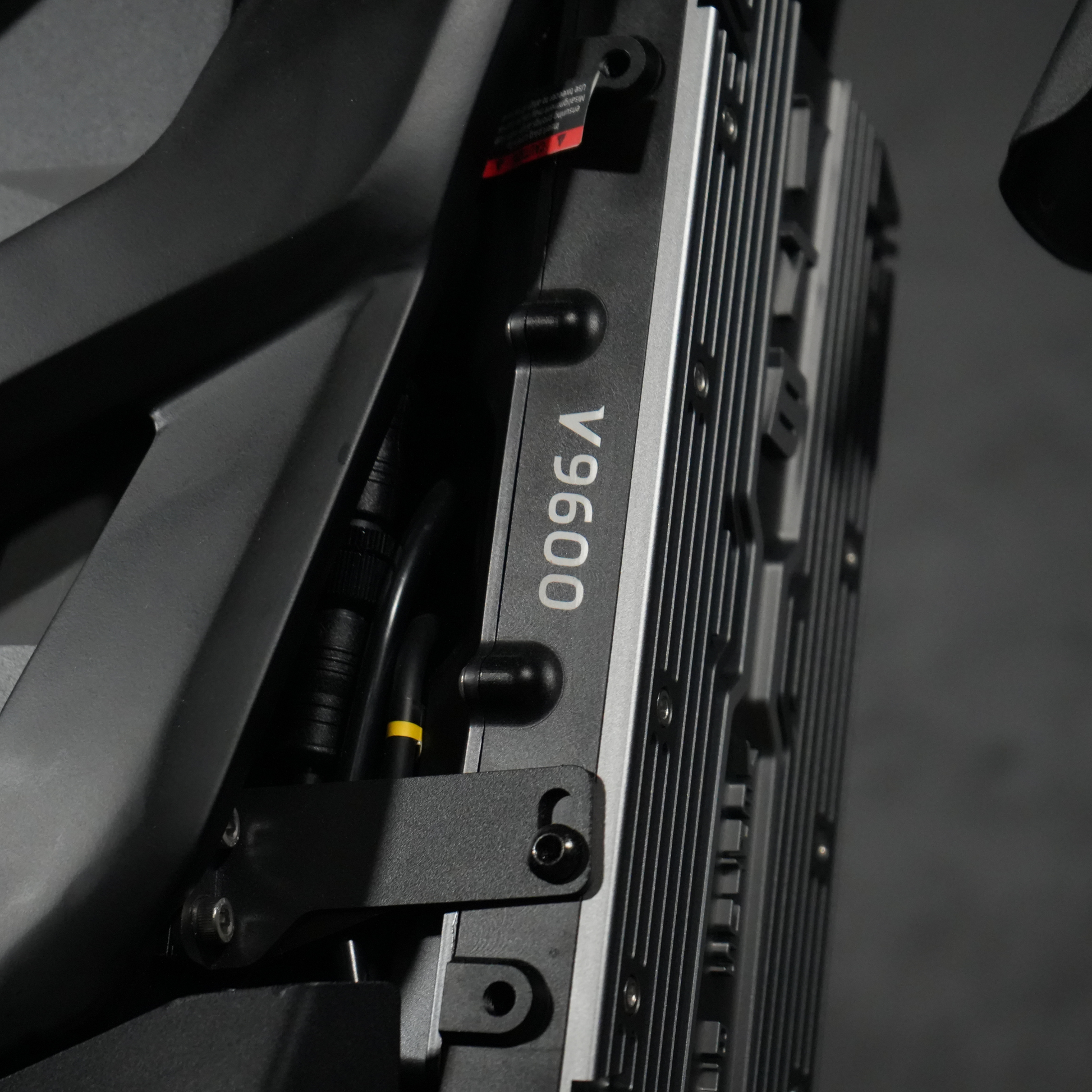

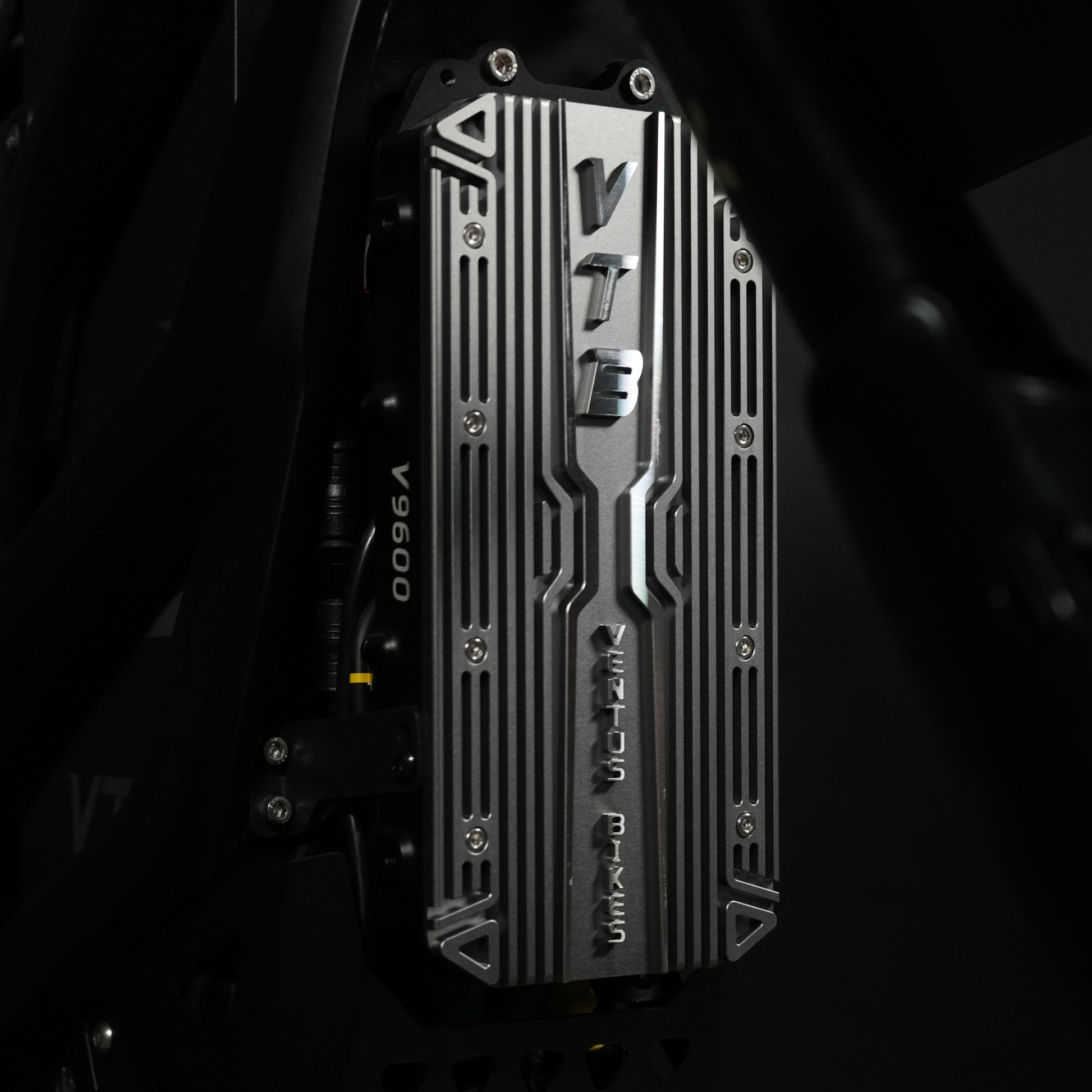

Ventus One Controller Specification
| Controller Type | X Version Sine Wave | |
| Dimensions | 240mm x 110mm x 50mm | |
| Peak Efficiency | 98.50% | |
| Power Modes | Eco and Sport |

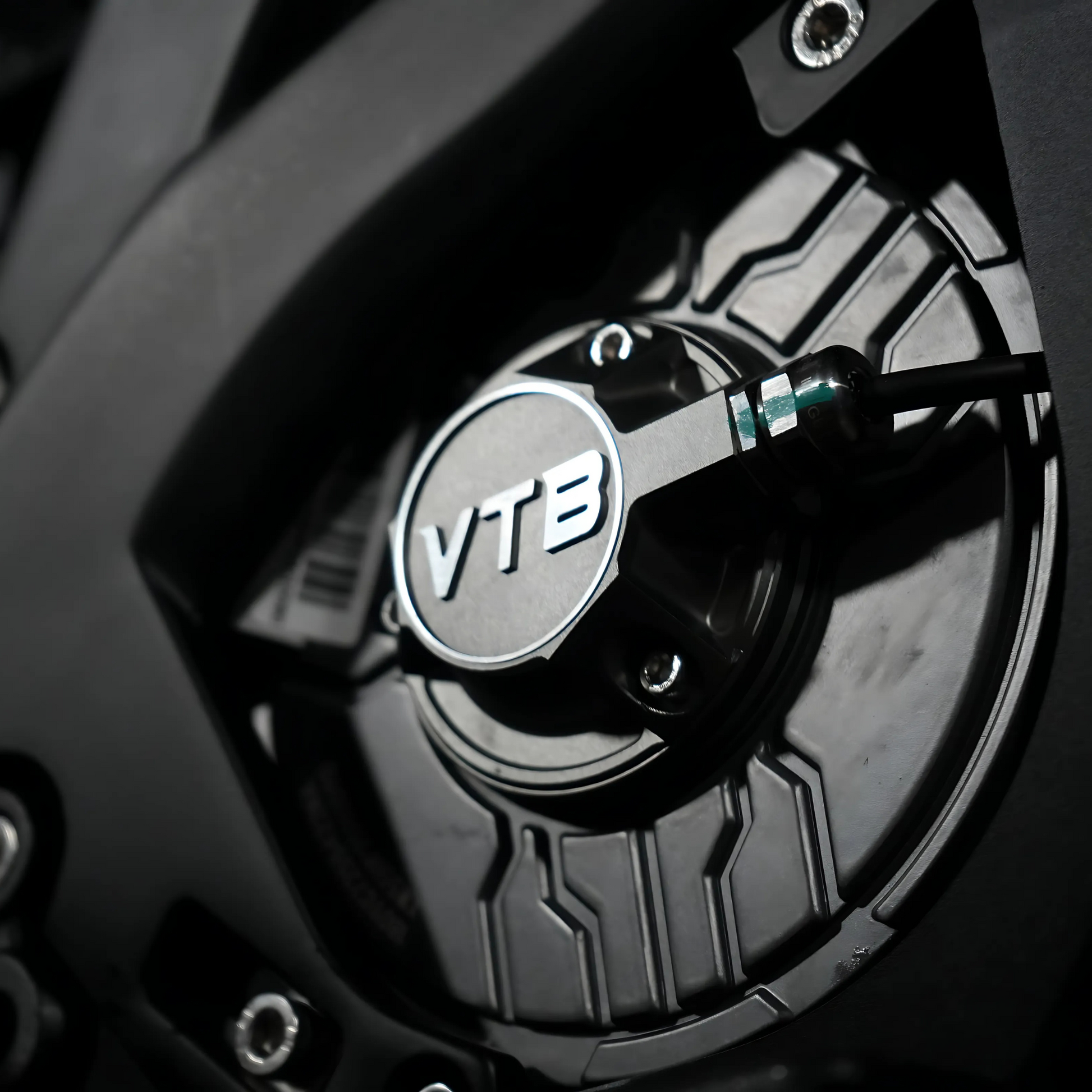

Ventus One Motor Specification
| Motor Type | PMSM | ||
| Weight / Motor External Diameter | 7.0kg / 180mm | ||
| Motor Axial Length | 130mm | ||
| Peak Efficiency | 95.60% | ||
| Cooling Method | Air-Cooled | ||
| Rated Voltage | 60V (DC) | ||
| Rated Power / Peak Power | 3,000W / 6,000W | ||
| Motor Shaft Output Torque @ 1000RPM | 35.40Nm | ||
| Rated Rotation Speed | 4300rpm | ||
| Peak Efficiency | 97.8% | ||
| Range of Efficiency (≥80) | 1.4Nm – 21.5Nm |
Ventus One Battery Specification
| Battery Type | 72V50Ah Ternary Lithium Battery |
| Charging Time | 4.2h |
| Frame Type | Aluminum Alloy Forging |
| Power Mode | 3-speed power + 5-mode |
